Trim-Tex · Specialty Bead

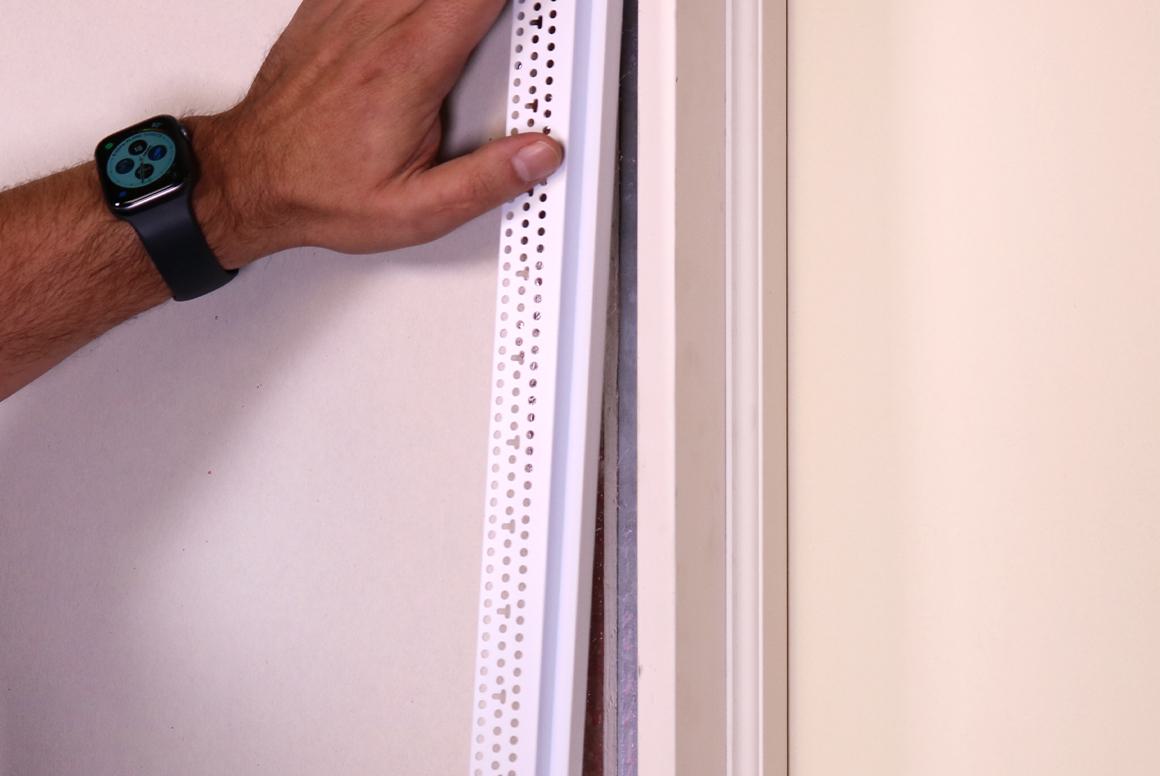

Architectural F Reveal Bead
Quote requiredTrim-Tex is the premier manufacturer of vinyl drywall beads & accessories. Drywall isn't finished without us.
Description, photography and documents as published by Trim-Tex. Their product page ↗
Items
3 of 3 items. Every figure is Trim-Tex's published data.| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | A SIZE | B SIZE | |
|---|---|---|---|---|---|---|
| ½" x ½" F Reveal | AS8710 | 25 | 10 ' | ½ " | ½ " | |
| ⅜" x ⅜" F Reveal | AS8720 | 25 | 10 ' | ⅜ " | ⅜ " | |
| ⅝" x ⅝" F Reveal | AS8750 | 20 | 10 ' | ⅝ " | ⅝ " |
Documents
7 documents, served straight from Trim-Tex so you always get the current revision.
- Architectural F Reveal Bead Installation GuideInstallation guide · PDF ↗
- Reveal Radius ChartInstallation guide · PDF ↗
- Architectural F Reveal Bead Submittal Sheet R2Submittal sheet · PDF ↗
- SDS - Rigid Vinyl Drywall Accessories 01Aug2018Safety data sheet · PDF ↗
- Drywall Trim-TrimTex-Bead-AS F RevealCAD / BIM · CAD ↗
- Architectural F Reveal BeadCAD / BIM · CAD ↗
- Architectural F Reveal BeadCAD / BIM · CAD ↗
