Architectural Reveal Bead

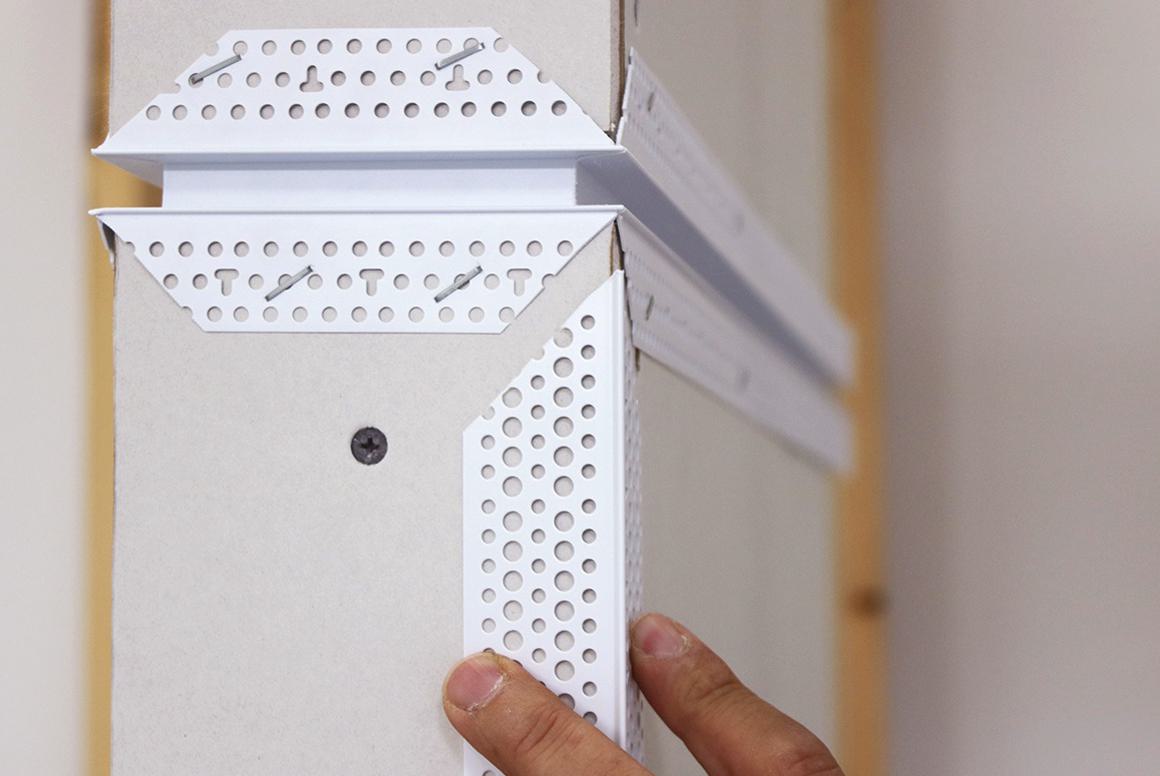

Quote requiredTrim-Tex's Architectural Reveal Bead creates the sharpest, cleanest aesthetic reveals in drywall you can get, with 1⁄8" of built-in expansion control.
Description, photography and documents as published by Trim-Tex. Their product page ↗
Items
6 of 6 items. Every figure is Trim-Tex's published data.| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | A SIZE | B SIZE | |
|---|---|---|---|---|---|---|
| ¼" x ¼" Reveal | AS5150 | 25 | 10 ' | ¼ " | ¼ " | |
| ⅜" x ⅜" Reveal | AS5130 | 20 | 10 ' | ⅜ " | ⅜ " | |
| ½" x ½" Reveal | AS5110 | 20 | 10 ' | ½ " | ½ " | |
| ⅝" x ⅝" Reveal | AS5325 | 15 | 10 ' | ⅝ " | ⅝ " | |
| ½" x 1" Reveal | AS5310 | 15 | 10 ' | ½ " | 1 " | |
| ½" x ½" Reveal Kit | AS5110M | 4 | 7 ' | ½ " | ½ " |
