Trim-Tex · Specialty Bead
Architectural Z Shadow Bead

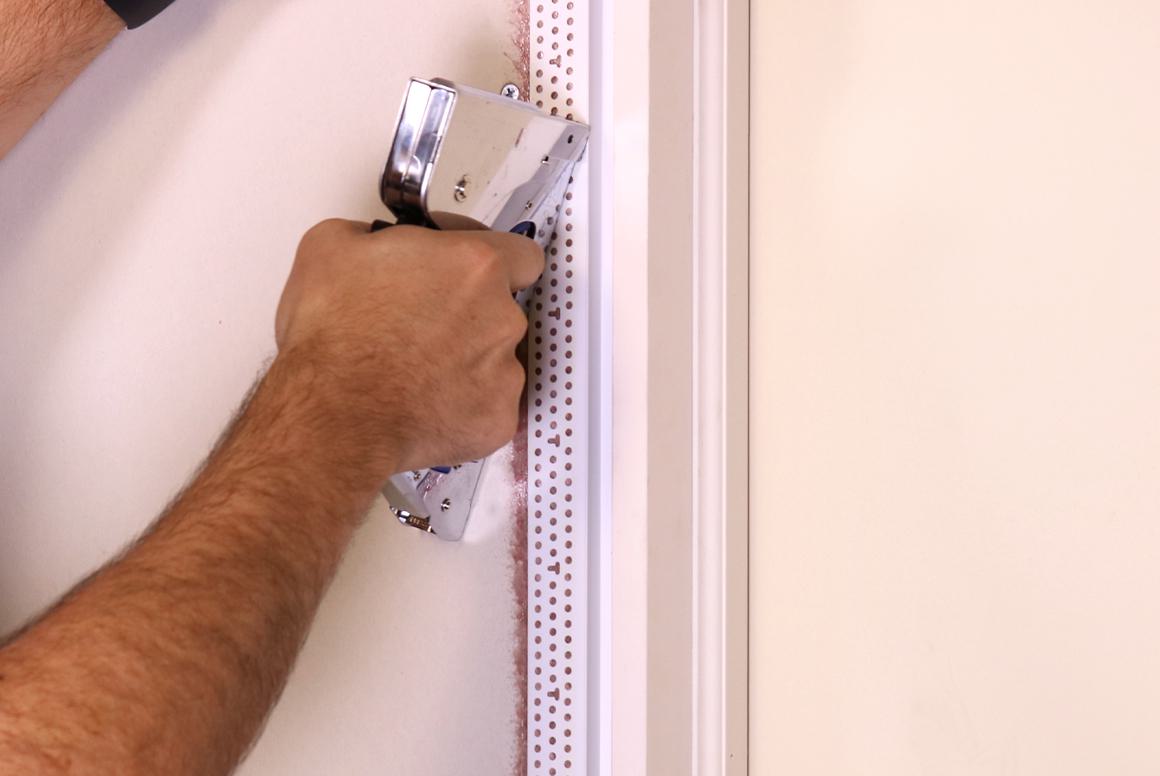

Quote requiredArchitectural Z Shadow Bead creates a sharp, clean edge reveal effect when butting up to ceilings, base trim, and other finished interior components.
Description, photography and documents as published by Trim-Tex. Their product page ↗
Items
8 of 8 items. Every figure is Trim-Tex's published data.| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | A SIZE | B SIZE | |
|---|---|---|---|---|---|---|
| ½" x ¼" Z Shadow | AS5410 | 50 | 10 ' | ½ " | ¼ " | |
| ½" x ½" Z Shadow | AS5510 | 50 | 10 ' | ½ " | ½ " | |
| ½" x ¾" Z Shadow | AS5610 | 50 | 10 ' | ½ " | ¾ " | |
| ⅝" x ½" Z Shadow | AS5810 | 50 | 10 ' | ⅝ " | ½ " | |
| ⅝" x ⅝" Z Shadow | AS6010 | 50 | 10 ' | ⅝ " | ⅝ " | |
| ⅝" x ¾" Z Shadow | AS5910 | 50 | 10 ' | ⅝ " | ¾ " | |
| ½" x ½" Z Shadow Kit | AS5510M | 6 | 7 ' | ½ " | ½ " | |
| ½" x ½" Z Shadow 30-Piece Kit | AS5510M30 | 30 | 7 ' | ½ " | ½ " |
Documents
9 documents, served straight from Trim-Tex so you always get the current revision.
- Architectural Z Shadow Bead Installation GuideInstallation guide · PDF ↗
- Reveal Radius ChartInstallation guide · PDF ↗
- Architectural Z Shadow Bead Submittal Sheet R2Submittal sheet · PDF ↗
- SDS - Rigid Vinyl Drywall Accessories 01Aug2018Safety data sheet · PDF ↗
- Profile Commercial-Products Trim-Tex Shadow-Bead-5000CAD / BIM · CAD ↗
- GWB Acc Shadow BeadCAD / BIM · CAD ↗
- Drywall Trim-TrimTex-Bead-AS Z ShadowCAD / BIM · CAD ↗
- Architectural Z Shadow BeadCAD / BIM · CAD ↗
- Architectural Z Shadow BeadCAD / BIM · CAD ↗
