Jumbo Corner Bead and Archway

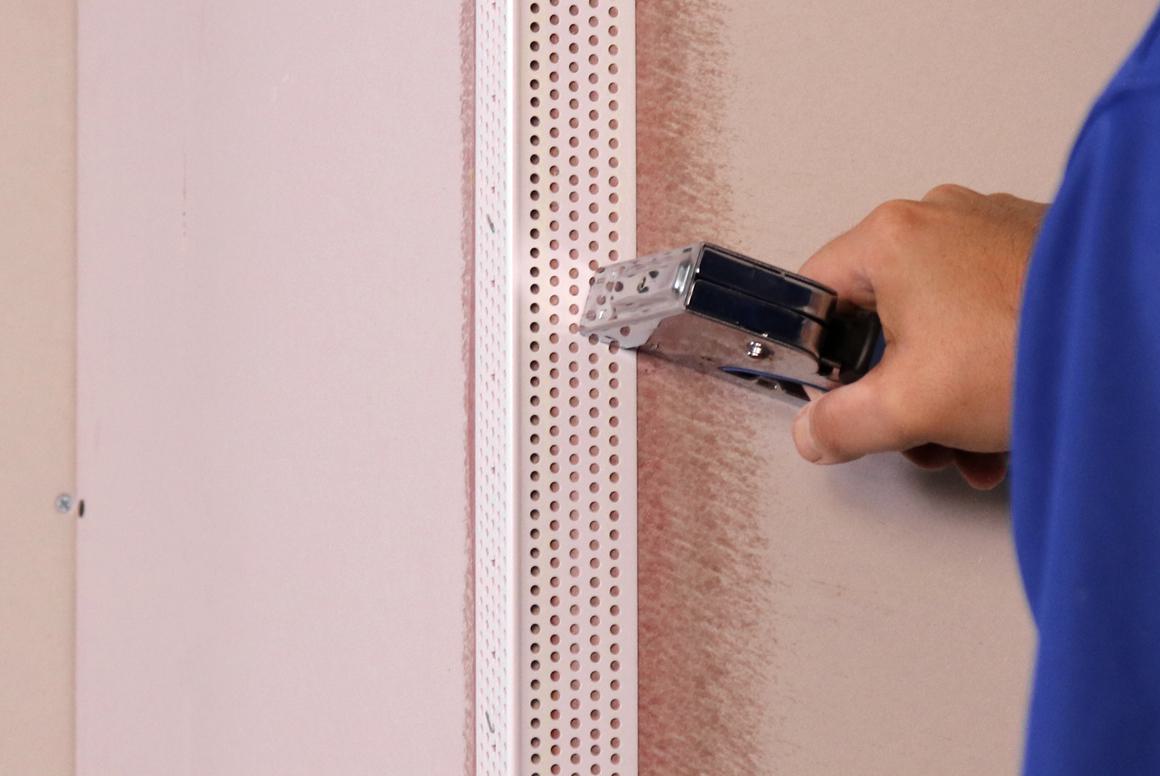

Quote requiredJumbo Corner Bead & Archway is a supersized tweak on our classic corner bead design, featuring a slight radius on its nose.
Description, photography and documents as published by Trim-Tex. Their product page ↗
Items
4 of 4 items. Every figure is Trim-Tex's published data.| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | |
|---|---|---|---|---|
| Jumbo Corner Bead 8' | J008 | 40 | 8 ' | |
| Jumbo Corner Bead 9' | J009 | 40 | 9 ' | |
| Jumbo Corner Bead 10' | J010 | 40 | 10 ' | |
| Archway Jumbo Corner Bead | JA10 | 40 | 10 ' |
Documents
7 documents, served straight from Trim-Tex so you always get the current revision.
- Jumbo Corner Bead Installation GuideInstallation guide · PDF ↗
- Jumbo Archway Bead Installation GuideInstallation guide · PDF ↗
- General Corner Bead Installation InstructionsInstallation guide · PDF ↗
- Jumbo Corner Bead and Archway Submittal Sheet R2Submittal sheet · PDF ↗
- SDS - Rigid Vinyl Drywall Accessories 01Aug2018Safety data sheet · PDF ↗
- J010 JA10 Jumbo Corner Bead ArchwayCAD / BIM · CAD ↗
- J010 JA10 Jumbo Corner Bead ArchwayCAD / BIM · CAD ↗
