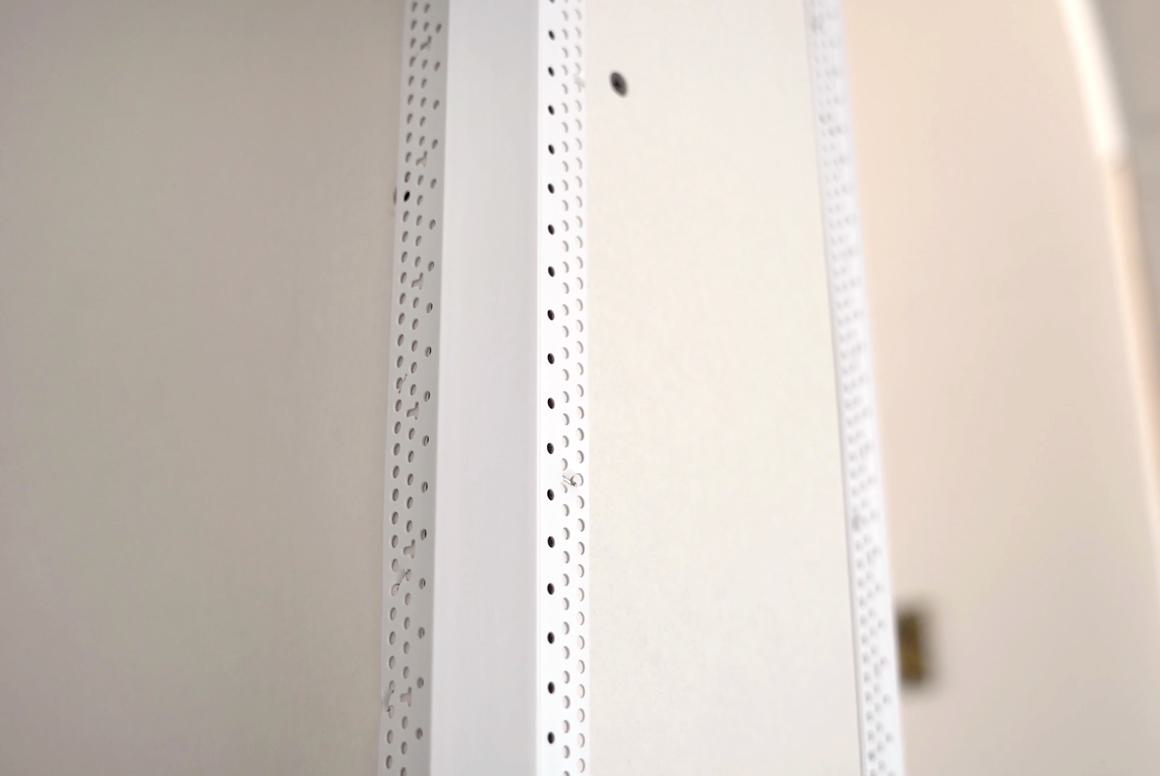

Large Chamfer Bead® and Archway
Quote requiredDiscover Large Chamfer Bead and Archway by Trim-Tex for strong and clean corners. Elevate your drywall designs.
Description, photography and documents as published by Trim-Tex. Their product page ↗
Items
4 of 4 items. Every figure is Trim-Tex's published data.| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | |
|---|---|---|---|---|
| Large Chamfer Bead 8' | 9508 | 30 | 8 ' | |
| Large Chamfer Bead 9' | 9509 | 30 | 9 ' | |
| Large Chamfer Bead 10' | 9510 | 30 | 10 ' | |
| Large Archway Chamfer Bead | 9550 | 30 | 10 ' |
Documents
10 documents, served straight from Trim-Tex so you always get the current revision.
- Large Chamfer Bead Installation GuideInstallation guide · PDF ↗
- Large Chamfer Archway Bead Installation GuideInstallation guide · PDF ↗
- General Corner Bead Installation InstructionsInstallation guide · PDF ↗
- Large Chamfer Corner Bead and Archway Submittal Sheet R2Submittal sheet · PDF ↗
- SDS - Rigid Vinyl Drywall Accessories 01Aug2018Safety data sheet · PDF ↗
- Profile Chamfer Trim-Tex Chamfer-Bead-9500 BIMCAD / BIM · CAD ↗
- Profile Chamfer Trim-Tex Chamfer-Arch-9550 BIMCAD / BIM · CAD ↗
- Drywall Trim-TrimTex-Bead-ChamferCAD / BIM · CAD ↗
- 9510 9550 Chamfer Bead ArchwayCAD / BIM · CAD ↗
- 9510 9550 Chamfer Bead ArchwayCAD / BIM · CAD ↗
