Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)

Bugle Head Pilot Point Screws

Quote required

Pro-Twist® Bugle Head Pilot Point Screws are designed to attach plywood to 20 to 14 gauge metal studs. Exterior coated for use where corrosion and rust are a concern, the bugle head provides a strong hold. #2 drill point drives efficiently through wood and metal materials and the fine threads grip light gauge metal for a reliable connection. Combo drive ensures compatibility on the job.

Application
Plywood to Metal Screws
Head Type
Bugle Head
Thread Type
Fine Thread
Point Type
#2 Drill Point

Description, photography and documents as published by Pro-Twist. Their product page ↗

Part numbers

2 of 2. Every figure is Pro-Twist's published data.

Gauge

Length

Head Type

Piece Count

Point Type

	Part #	Gauge	Length	Head Type	Piece Count	Point Type

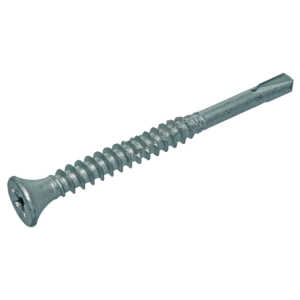

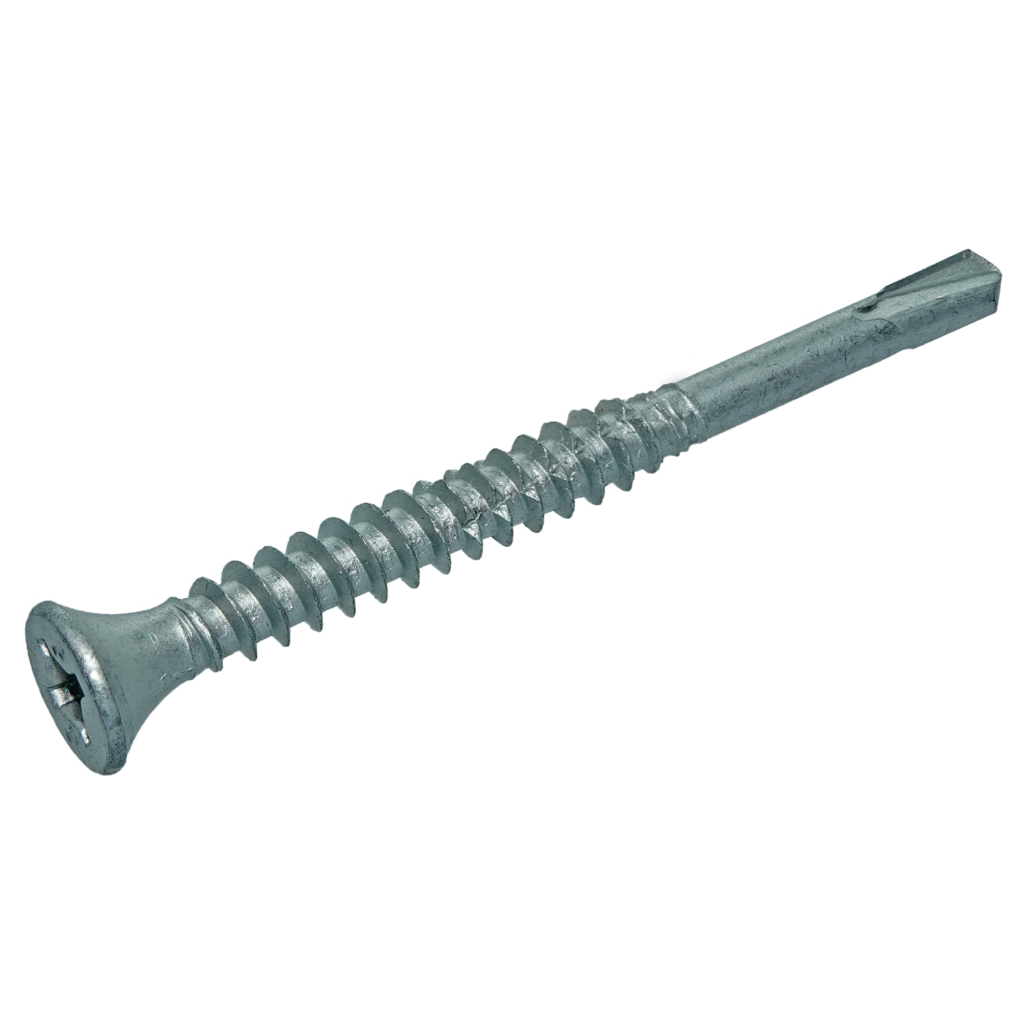

	PP2	#8	2 in.	Bugle Head	4000	#2 Drill Point

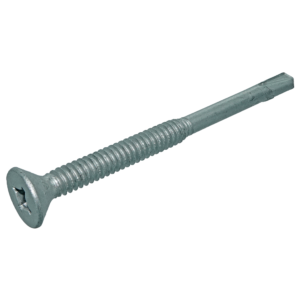

	PP212	#10	2-1/2 in.	Flat Head	2000	#3 Drill Point

The same on every part number here

Application: Plywood to Metal Screws
Drive Type: Combo Drive
Thread Type: Fine Thread
Self-Drilling: Yes
Finish or Coating: Exterior Coated
Base Material: High Carbon Steel
Hand Drive: Yes
Collated: No
Packaging: Carton

Details

Exterior coated bugle head wood to metal screws

Made from high carbon steel for durability and strength

For attaching up to 3/4 in. plywood to 20 to 14 gauge metal studs

#2 Combination Drive for stability during installation

Fine threads grip metal substrate and provide strong compressive grip

Exterior coated for enhanced corrosion and rust resistance

For metal stud framing

Self-drilling point drives quickly through metal framing
