Pro-Twist · Woodworking Screws

Cabinet Screws

Quote required

Pro-Twist® Cabinet Screws are designed to hang cabinets in wood studs and light gauge metal framing. T 17 point removes the need for pre-drilling and coarse threads make driving fast and efficient. Combo drive allows fastener to stay on tooltip while cabinet is held in place. Washer head provides a strong hold and attractive yellow zinc plating leaves an aesthetically pleasing finish.

Application
Wood to Wood or Metal
Head Type
Washer Head
Thread Type
Coarse Thread
Point Type
Type 17

Description, photography and documents as published by Pro-Twist. Their product page ↗

Part numbers

2 of 2. Every figure is Pro-Twist's published data.

Length

Piece Count

	Part #	Length	Piece Count

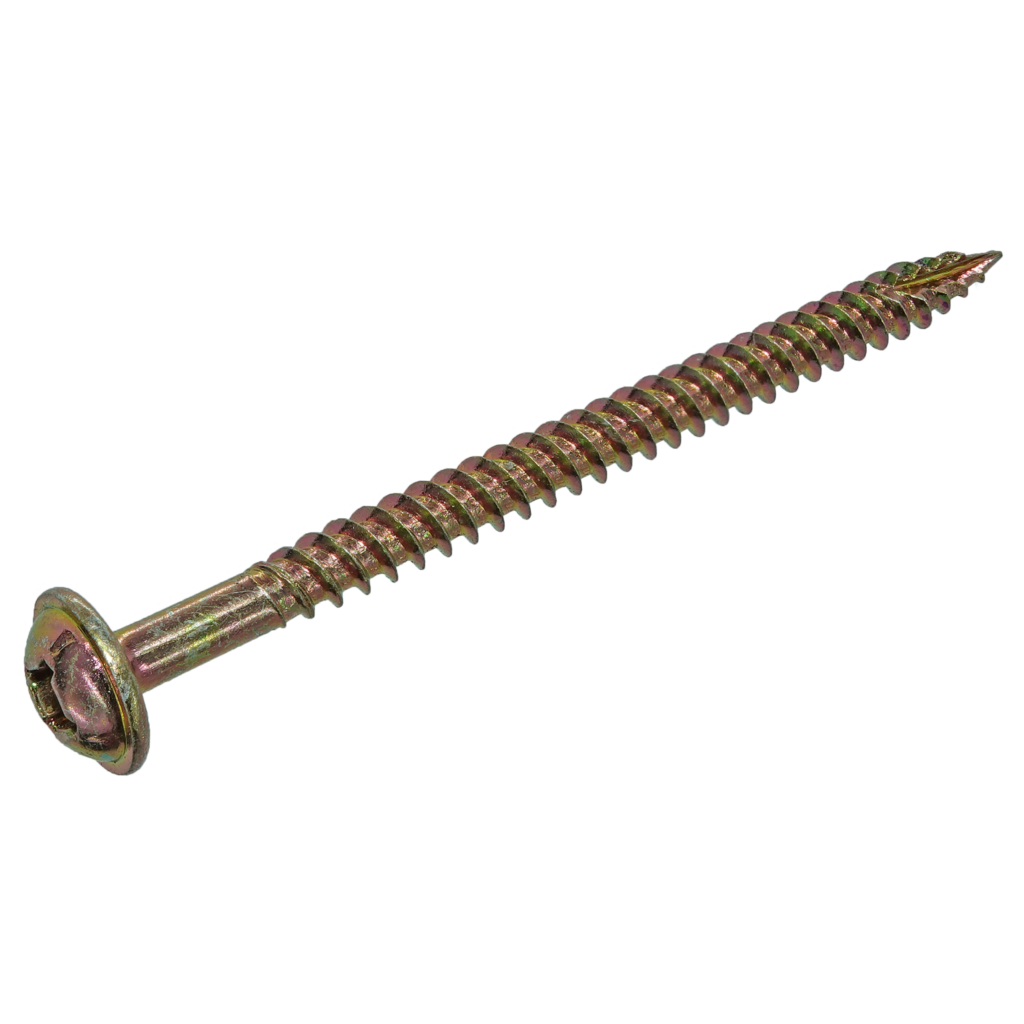

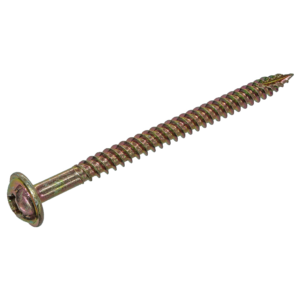

	CBS238	2-3/8 in.	2500

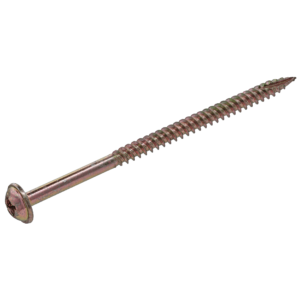

	CBS300	3 in.	2000

The same on every part number here

Application: Wood to Wood or Metal
Gauge: #8
Head Type: Washer Head
Drive Type: Combo Drive
Point Type: Type 17
Thread Type: Coarse Thread
Self-Drilling: Yes
Finish or Coating: Yellow Zinc Plated
Base Material: High Carbon Steel
Hand Drive: Yes
Collated: No
Packaging: Box

Details

Yellow zinc plated washer head cabinet screws

Made from high carbon steel for durability and strength

For attaching cabinets to wood or light gauge steel studs

Washer head for a secure hold

#2 Combination Drive for stability during driving

Coarse threads for a fast drive and reliable hold

For use with wood or metal studs

Yellow zinc plated for corrosion resistance and an attractive finish

Combo drive allows fastener to stay on tooltip during driving

T 17 point makes pre-drilling unnecessary

Documents

3 documents, served straight from Pro-Twist so you always get the current revision.

Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
