Collated Self-Drilling Screws

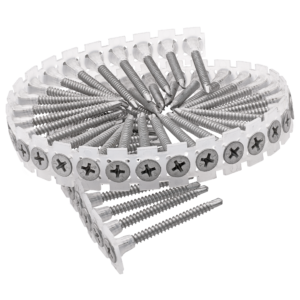

Quote requiredPro-Twist® Collated Drywall Screws are designed for interior drywall to wood stud applications. Compatible with tools from Grabber, Hitachi, Milwaukee, Pam, Senco, DeWalt, Makita and more. Well defined coarse threads provide a strong grip in wood substrates and the sharp point pierces easily through drywall and wood. Bugle head with #2 Reduced Phillips Drive resist over driving and seat flush with the surface of gypsum board. Coating protects metal from joint compound and prevents corrosion and rust. Available in Phosphate, Exterior, or Yellow Zinc coatings.
Application
Hidden Fasteners for Composite Decking | Pro-Twist
Head Type
Bugle Head
Thread Type
Fine Thread
Point Type
#2 Self-Drill Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
13 of 13. Every figure is Pro-Twist's published data.| Part # | Length | Piece Count | Finish or Coating | |
|---|---|---|---|---|

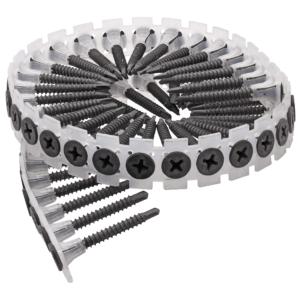

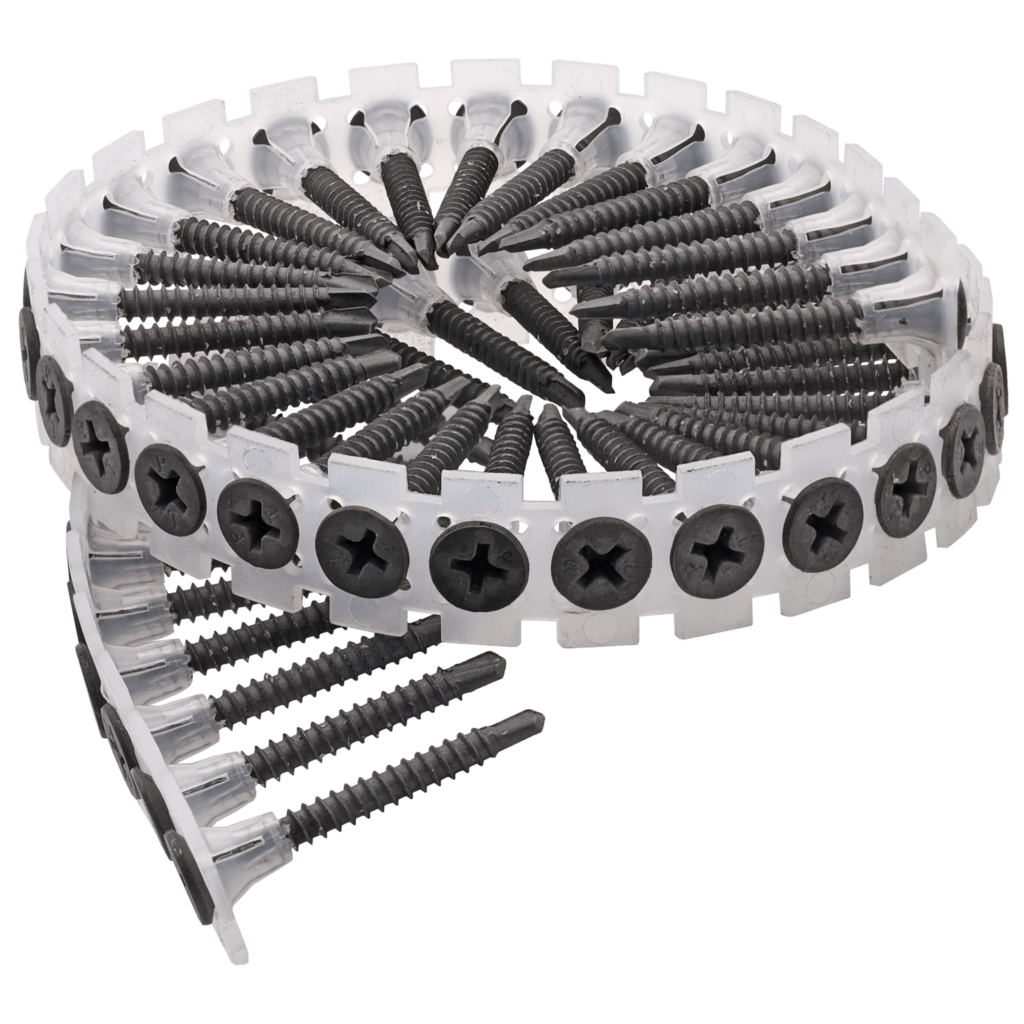

| SD114C1M | 1-1/4 in. | 1000 | Phosphate Coated | |
| SD114C4M | 1-1/4 in. | 4000 | Phosphate Coated | |

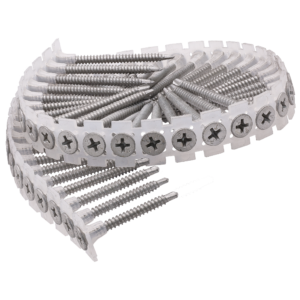

| SD114PGPC1M | 1-1/4 in. | 1000 | Exterior Coated | |

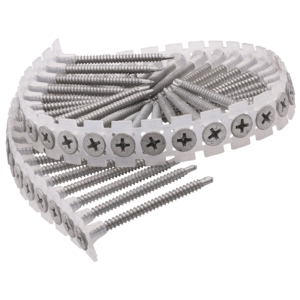

| SD158PGPC1M | 1-5/8 in. | 1000 | Exterior Coated | |
| SD178PGPC1M | 1-7/8 in. | 1000 | Exterior Coated | |

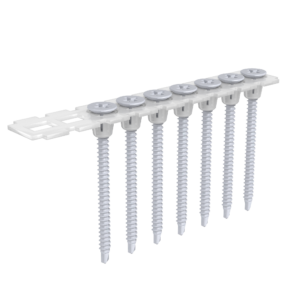

| SD178PGPC4M | 1-7/8 in. | 4000 | Exterior Coated | |

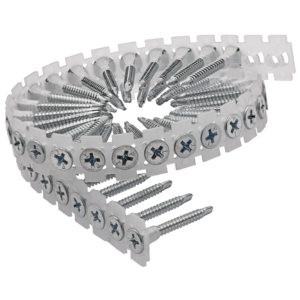

| SDZ114C1M | 1-1/4 in. | 1000 | Zinc Plated | |
| SDZ114C4M | 1-1/4 in. | 4000 | Zinc Plated | |
| SDZ158C1M | 1-5/8 in. | 1000 | Zinc Plated | |

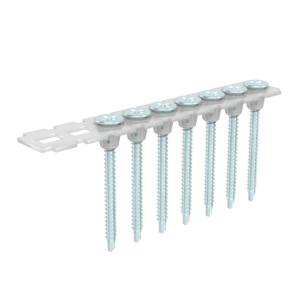

| SDZ158C4M | 1-5/8 in. | 4000 | Zinc Plated | |

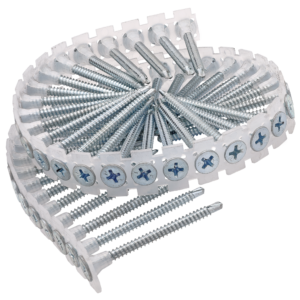

| SDZ178C1M | 1-7/8 in. | 1000 | Zinc Plated | |
| SDZ178C4M | 1-7/8 in. | 4000 | Zinc Plated | |
| SDZ6200C1M | 2 in. | 1000 | Zinc Plated |
The same on every part number here
- Application
- Drywall to Metal Screws
- Gauge
- #6
- Head Type
- Bugle Head
- Drive Type
- #2 Reduced Phillips
- Point Type
- #2 Self-Drill Point
- Thread Type
- Fine Thread
- Self-Drilling
- Yes
- Base Material
- High Carbon Steel
- Hand Drive
- No
- Collated
- Yes
- Packaging
- Carton
- Code Approvals
- ICC-ES Evaluation Report ESR-1408
Details
Phosphate coated collated drywall screws
Made from high carbon steel for durability and strength
For interior drywall applications
Bugle head for easy countersinking and strong hold
#2 Reduced Phillips Drive prevents over driving
Coarse threads grip wood substrate and provide strong compressive hold
Phosphate coating for fast driving and some corrosion resistance
Sharp point drills through drywall and into wood studs easily
Documents
4 documents, served straight from Pro-Twist so you always get the current revision.
- ESR-1408Evaluation report · PDF ↗
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
