Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)

Low Profile Framer Screws

Quote required

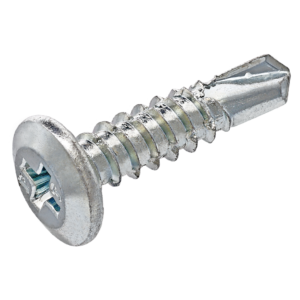

Pro-Twist® Low Profile Framer Screws are designed to attach 20 to 16 gauge steel track to 20 to 16 gauge steel studs. #2 Phillips Drive prevents over driving and the low profile head and #10 diameter increase shear strength and serrations under the drive head reduce spin out. Zinc plated for enhanced corrosion resistance. #2 drill point pierces quickly through metal substrates.

Application
Metal to Metal Screws
Head Type
Pan Head with Serrations
Thread Type
Fine Thread
Point Type
#3 Drill Point

Description, photography and documents as published by Pro-Twist. Their product page ↗

Part numbers

2 of 2. Every figure is Pro-Twist's published data.

Length

	Part #	Length

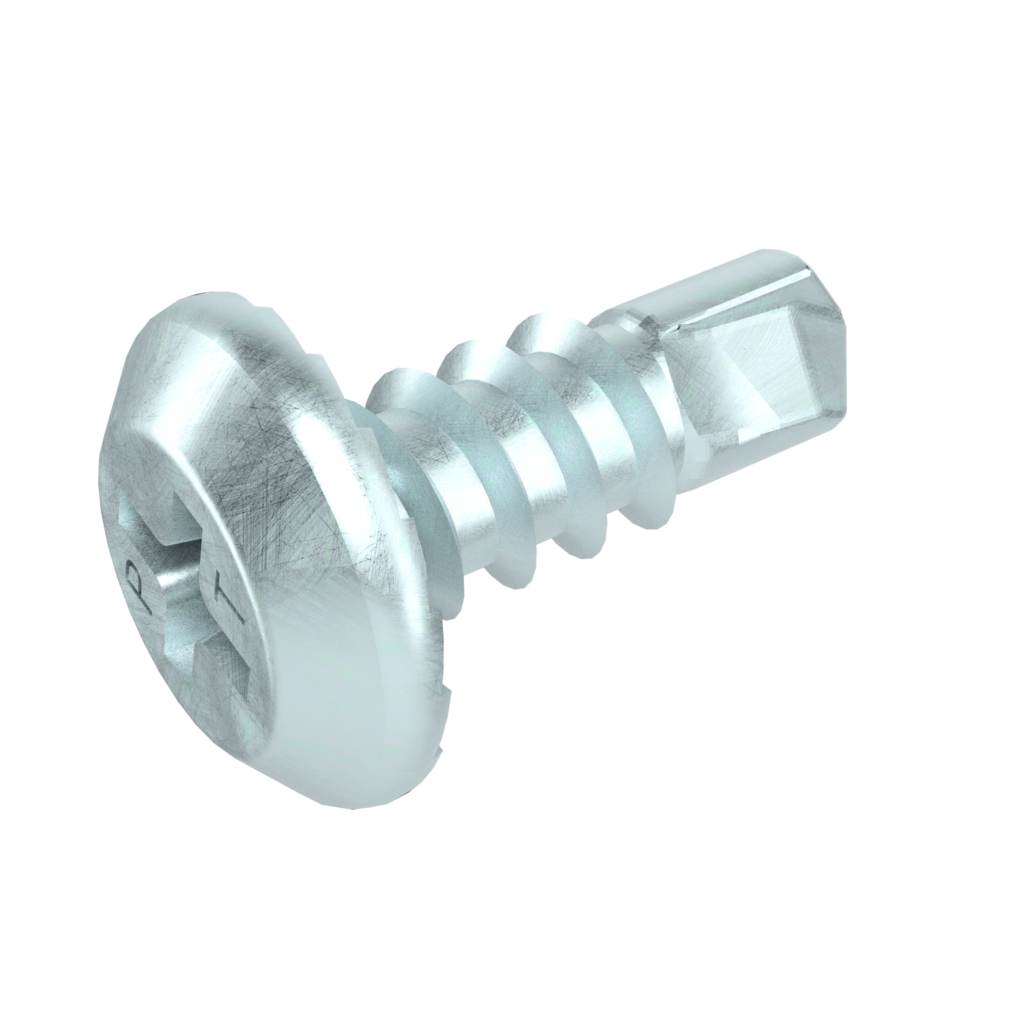

	FT1012	1/2 in.
	FT1034	3/4 in.

The same on every part number here

Application: Metal to Metal Screws
Gauge: #10
Head Type: Pan Head with Serrations
Drive Type: #2 Phillips
Point Type: #3 Drill Point
Thread Type: Fine Thread
Self-Drilling: Yes
Finish or Coating: Zinc Plated
Base Material: High Carbon Steel
Hand Drive: Yes
Collated: No
Piece Count: 7500
Packaging: Carton
Code Approvals: ICC-ES Evaluation Report ESR-1408

Details

Zinc plated low profile metal framing screws

Made from high carbon steel for strength and durability

For attaching steel track to light gauge metal studs

Low profile metal framing screw for 20 to 16 gauge steel

#2 Phillips for a solid tooltip to fastener connection

Serrations under the drive head prevent spin out

Zinc plated for some corrosion resistance

#3 self-drill point pierces quickly through metal substrates

Documents

4 documents, served straight from Pro-Twist so you always get the current revision.

Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
