Pro-Twist · Steel Screws (Light Gauge)

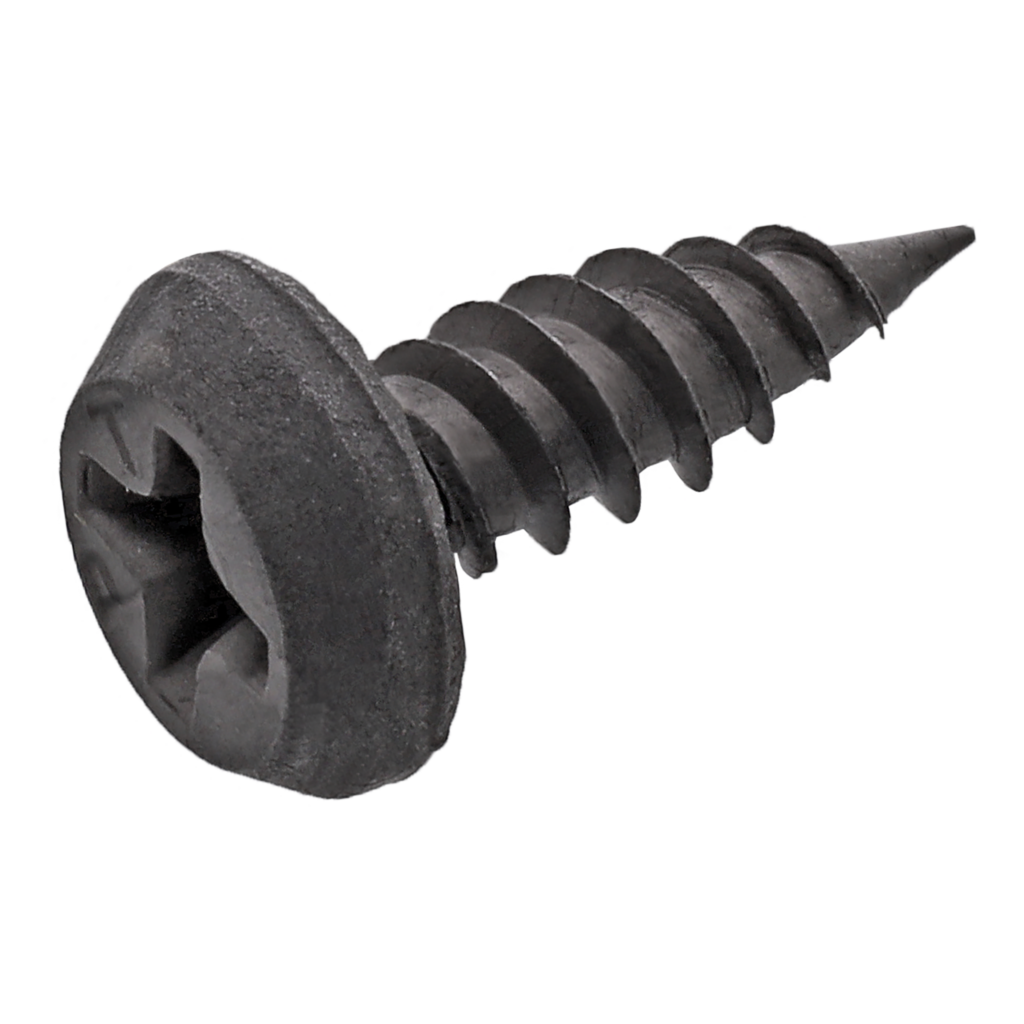

Pan Framer Screws for Metal Framing
Quote requiredPro-Twist Phosphate Coated Pan Framer Screws are designed to attach 25 to 20 gauge steel track to 25 to 20 gauge steel studs. Intended for use in non-load bearing applications, these screws feature a sharp point for fast penetration of steel framing. Phosphate coating speeds driving and provides some corrosion resistance. #2 Reduced Phillips Drive prevents overdriving and serrations under the head reduce spin out.
Application
Metal to Metal Screws
Head Type
Pan Framer Head
Thread Type
Fine Thread
Point Type
Sharp Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
2 of 2. Every figure is Pro-Twist's published data.| Part # | Piece Count | |
|---|---|---|
| PF716 | 10000 | |
| PF71615M | 15000 |
The same on every part number here
- Application
- Metal to Metal Screws
- Gauge
- #7
- Length
- 7/16 in.
- Head Type
- Pan Framer Head
- Drive Type
- #2 Reduced Phillips
- Point Type
- Sharp Point
- Thread Type
- Fine Thread
- Self-Drilling
- No
- Finish or Coating
- Phosphate Coated
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Packaging
- Carton
Details
Phosphate coated pan framer screws
Made from high carbon steel for strength and durability
For attaching steel track to steel studs
Phosphate Coated Pan Framer Screws for 25 to 20 gauge steel
#2 Reduced Phillips reduces the chance of over driving
Serrations under the drive head prevent spin out
Phosphate coating for faster driving and some corrosion resistance
Sharp point pierces through metal substrates quickly
