Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)

Pancake Framer Screws

Quote required

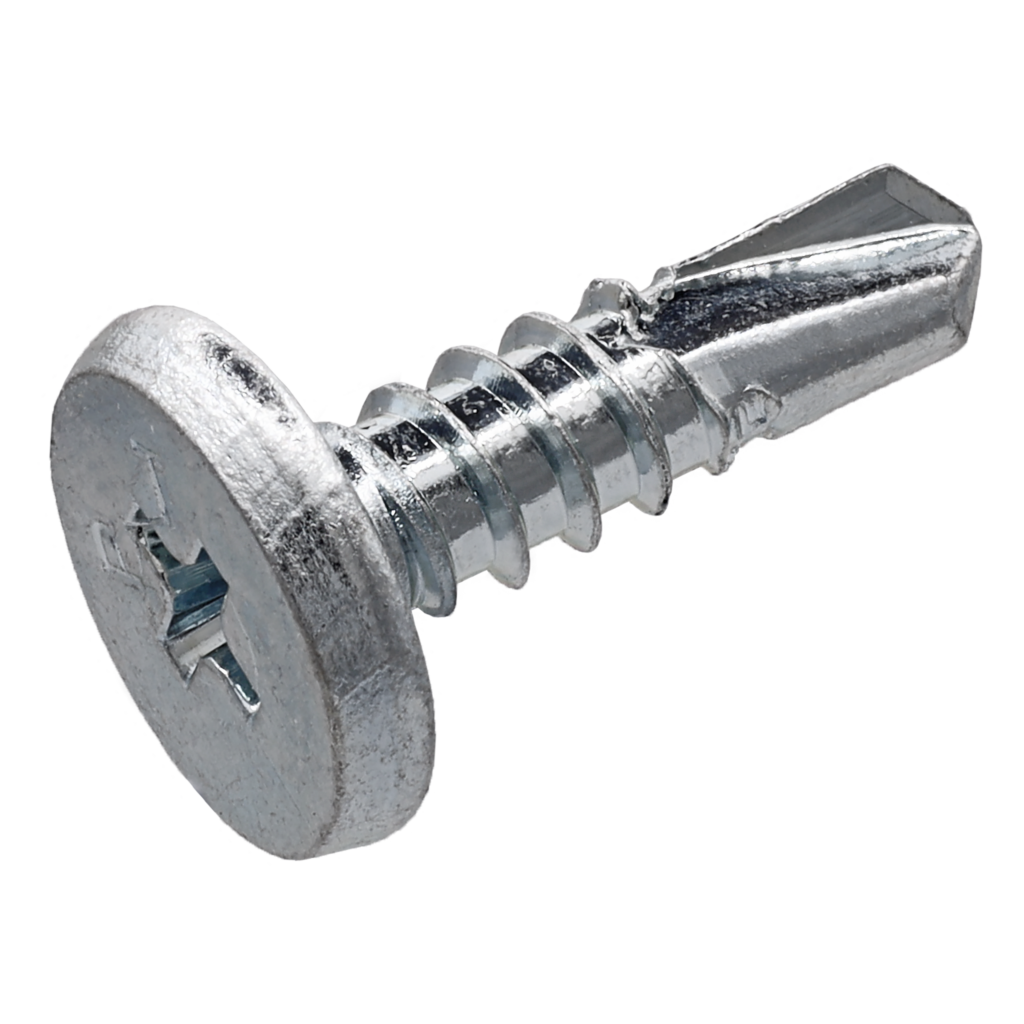

Pro-Twist® Pancake Framer Screws are designed to attach 20 to 14 gauge steel track to 20 to 16 gauge steel studs. The #2 Phillips prevents over driving and the low profile head sits flush with material. Zinc plated for enhanced corrosion resistance, the #3 drill point pierces quickly through metal substrates.

Application
Metal to Metal Screws
Head Type
Pancake Head
Thread Type
Fine Thread
Point Type
#2 Drill Point

Description, photography and documents as published by Pro-Twist. Their product page ↗

Part numbers

1 of 1. Every figure is Pro-Twist's published data.

	Part #
	PPH1058

The same on every part number here

Application: Metal to Metal Screws
Gauge: #10
Length: 5/8 in.
Head Type: Pancake Head
Drive Type: #2 Phillips
Point Type: #2 Drill Point
Thread Type: Fine Thread
Self-Drilling: Yes
Finish or Coating: Zinc Plated
Base Material: High Carbon Steel
Hand Drive: Yes
Collated: No
Piece Count: 7500
Packaging: Carton
Code Approvals: ICC-ES Evaluation Report ESR-1408

Details

Zinc plated pancake head metal framing screws

Made from high carbon steel for strength and durability

For attaching steel track to steel studs

Pancake head metal framing screw for 20 to 14 gauge steel

#2 Phillips reduces the chance of over driving

Serrations under the drive head prevent spin out

Zinc plated for slight corrosion resistance

Sharp point pierces through metal substrates quickly

#3 self-drill point pierces quickly through metal substrates
