Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)
Phillips Pan Head Screws
Quote requiredPro-Twist® Phillips Pan Head Screws are designed to attach metal strapping or a furring channel to steel joists. Zinc plated for enhanced corrosion resistance, the pan head provides a solid connection in metal to metal applications. #2 Phillips Drive prevents over driving and the #3 drill point pierces quickly through metal substrates.
Application
Metal to Metal Screws
Head Type
Pan Head
Thread Type
Full Thread
Point Type
#3 Drill Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
7 of 7. Every figure is Pro-Twist's published data.| Part # | Gauge | Length | Piece Count | |
|---|---|---|---|---|

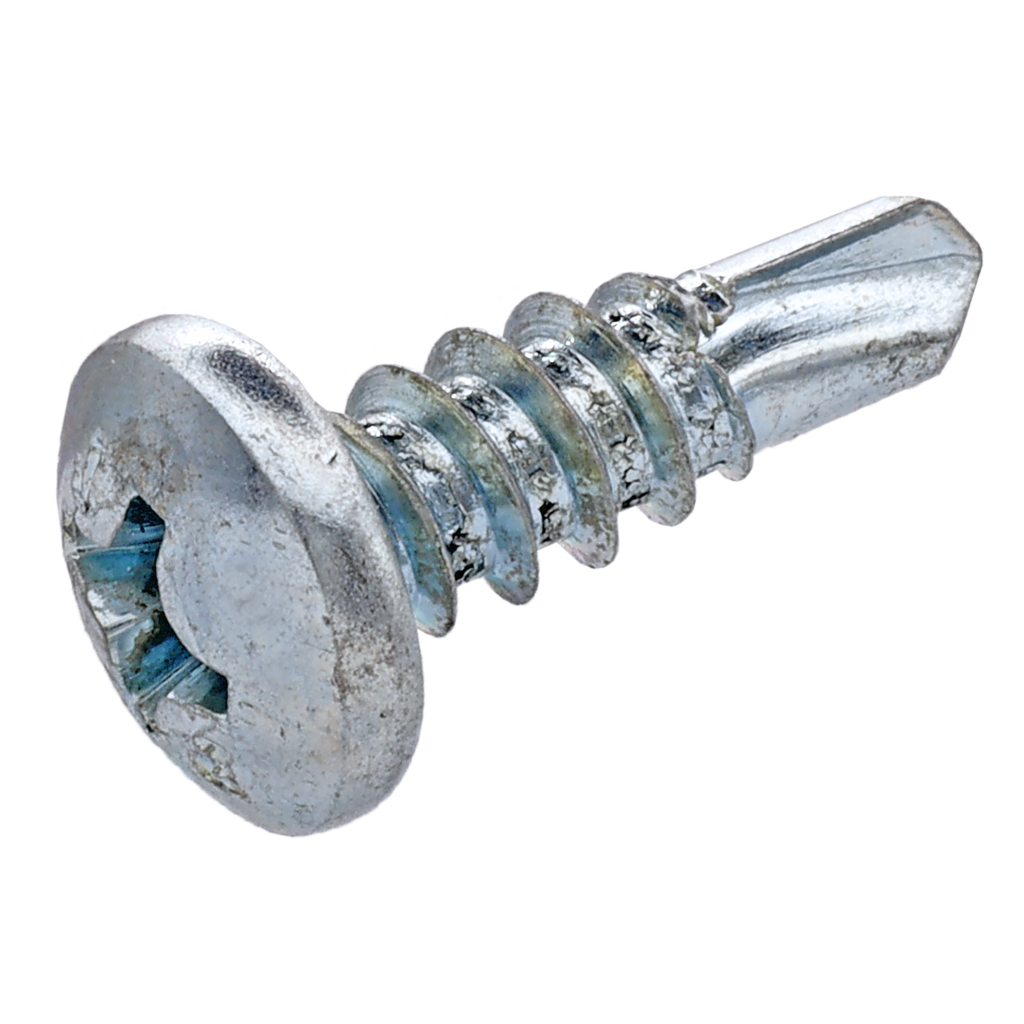

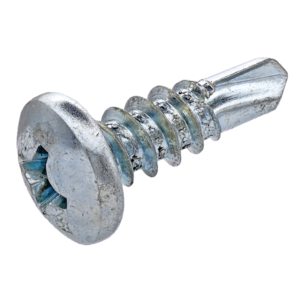

| PD812 | #8 | 1/2 in. | 10000 | |

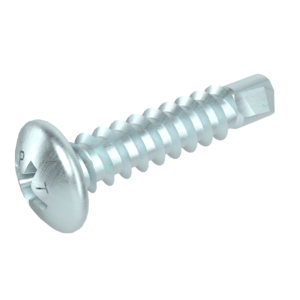

| PD834 | #8 | 3/4 in. | 10000 | |

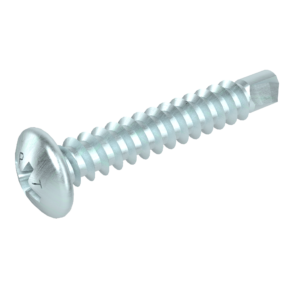

| PD8100 | #8 | 1 in. | 8000 | |
| PD1012 | #10 | 1/2 in. | 8000 | |

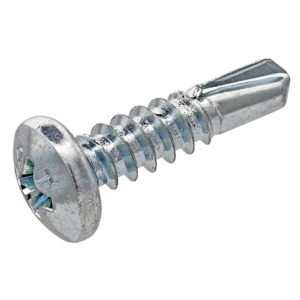

| PD1034 | #10 | 3/4 in. | 6000 | |

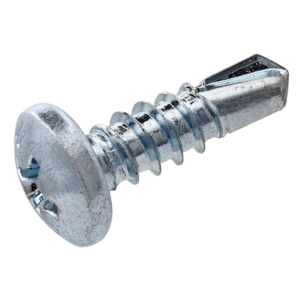

| PD1058 | #10 | 5/8 in. | 7000 | |

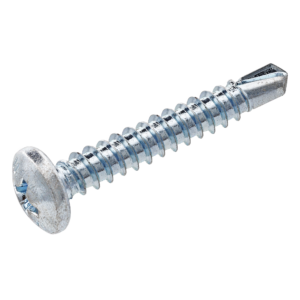

| PD10100 | #10 | 1 in. | 5000 |
The same on every part number here
- Application
- Metal to Metal Screws
- Head Type
- Pan Head
- Drive Type
- #2 Phillips
- Point Type
- #3 Drill Point
- Thread Type
- Full Thread
- Self-Drilling
- Yes
- Finish or Coating
- Zinc Plated
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Packaging
- Carton
- Code Approvals
- ICC-ES Evaluation Report ESR-1408
Details
Zinc plated pancake head metal framing screws
Made from high carbon steel for strength and durability
For attaching steel track to steel studs
Pancake head metal framing screw for 20 to 14 gauge steel
#2 Phillips reduces the chance of over driving
Serrations under the drive head prevent spin out
Phosphate coating for faster driving and some corrosion resistance
Sharp point pierces through metal substrates quickly
#3 self-drill point pierces quickly through metal substrates
Documents
4 documents, served straight from Pro-Twist so you always get the current revision.
- ESR-1408Evaluation report · PDF ↗
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
