Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)
Self-Drilling Modified Truss Screws
Quote requiredPro-Twist® Self-Drilling Modified Truss Screws are designed to attach metal lath to 20 to 16 gauge steel studs in stucco. Zinc plated for enhanced corrosion resistance, the wide truss head provides a secure hold in metal substrates. #2 Phillips Drive prevents over driving and the #2 drill point pierces quickly through all substrates.
Application
Metal to Metal Screws
Head Type
Modified Truss Head
Thread Type
Fine Thread
Point Type
#2 Drill Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
10 of 10. Every figure is Pro-Twist's published data.| Part # | Gauge | Length | Piece Count | |
|---|---|---|---|---|

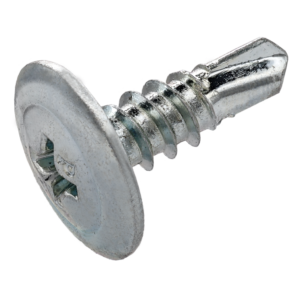

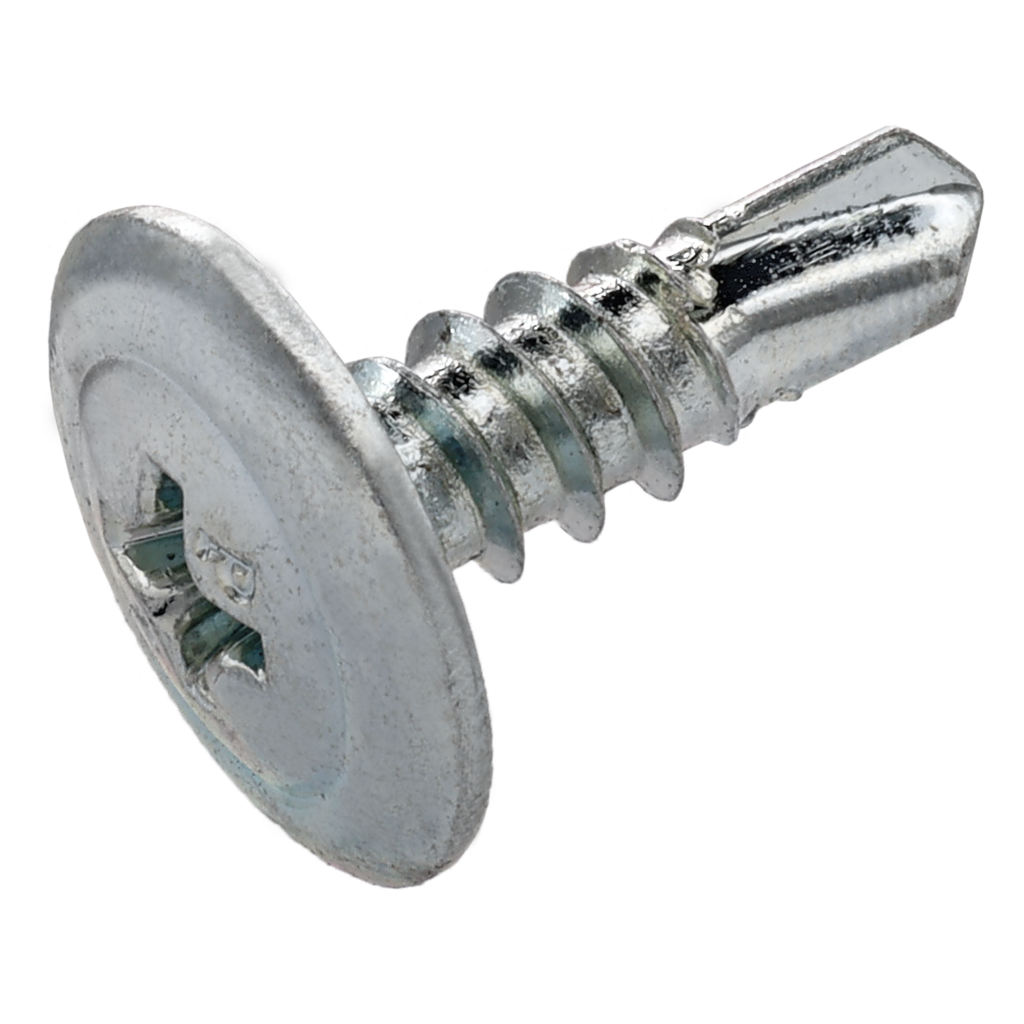

| MTD812 | #8 | 1/2 in. | 10000 | |

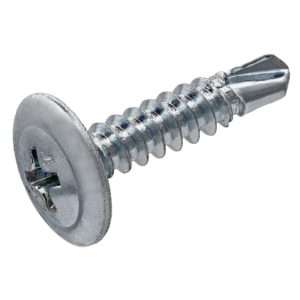

| MTD834 | #8 | 3/4 in. | 10000 | |

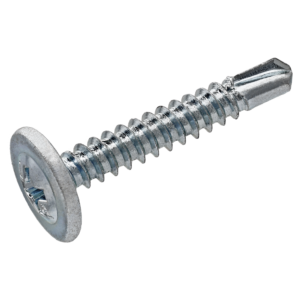

| MTD8100 | #8 | 1 in. | 8000 | |

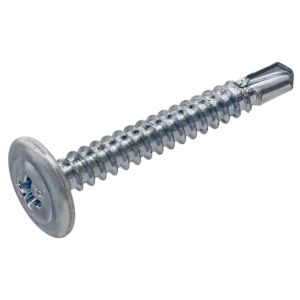

| MTD8114 | #8 | 1-1/4 in. | 6000 | |

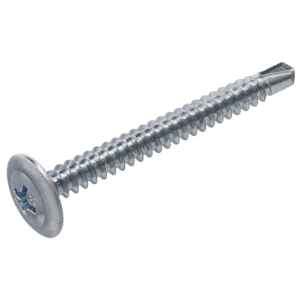

| MTD8158 | #8 | 1-5/8 in. | 5000 | |

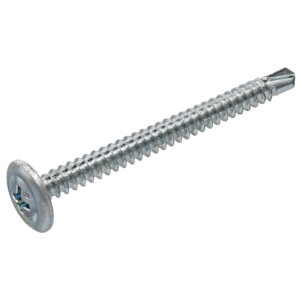

| MTD8178 | #8 | 1-7/8 in. | 3000 | |

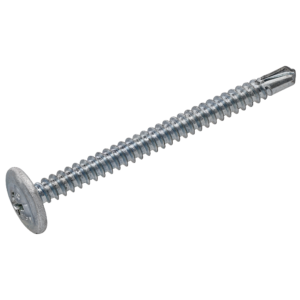

| MTD8200 | #8 | 2 in. | 2500 | |

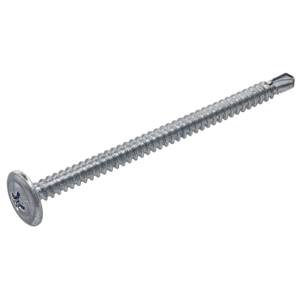

| MTD8212 | #8 | 2-1/2 in. | 2000 | |

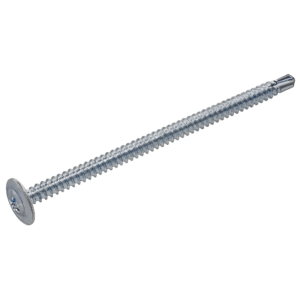

| MTD8300 | #8 | 3 in. | 1500 | |

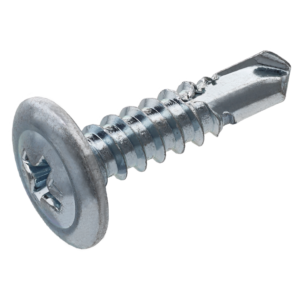

| MTD1034 | #10 | 3/4 in. | 5000 |
The same on every part number here
- Application
- Metal to Metal Screws
- Head Type
- Modified Truss Head
- Drive Type
- #2 Phillips
- Point Type
- #2 Drill Point
- Thread Type
- Fine Thread
- Self-Drilling
- Yes
- Finish or Coating
- Zinc Plated
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Packaging
- Carton
Details
Zinc plated self-drilling modified truss screws for attaching metal lath to 20 to 16 gauge steel studs in stucco and other applications
Made from high carbon steel for strength and durability
For various applications involving wood and metal studs
Self-Drilling Modified Truss Screws for a powerful hold in 20 to 16 gauge steel studs in stucco
#2 Phillips Drive reduces the chance of over driving
Fine threads grip metal studs for a solid connection
Zinc plated for increased corrosion resistance
#2 point pierces through metal substrates quickly
Documents
3 documents, served straight from Pro-Twist so you always get the current revision.
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
