Pro-Twist · Self-Drilling Screws (Light/Medium Gauge)
Self-Drilling Pan Framer Screws
Quote requiredPro-Twist® Self-Drilling Pan Framer Screws are designed to attach 20 to 16 gauge steel track to 20 to 16 gauge steel studs. #2 Reduced Phillips head prevents over driving and serrations under the head reduce spin out. Zinc plated or phosphate coated for enhanced corrosion resistance. #2 drill point pierces quickly through metal substrates.
Application
Metal to Metal Screws
Head Type
Pan Framer Head with Serrations
Thread Type
Fine Thread
Point Type
#2 Drill Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
3 of 3. Every figure is Pro-Twist's published data.| Part # | Piece Count | Finish or Coating | |
|---|---|---|---|

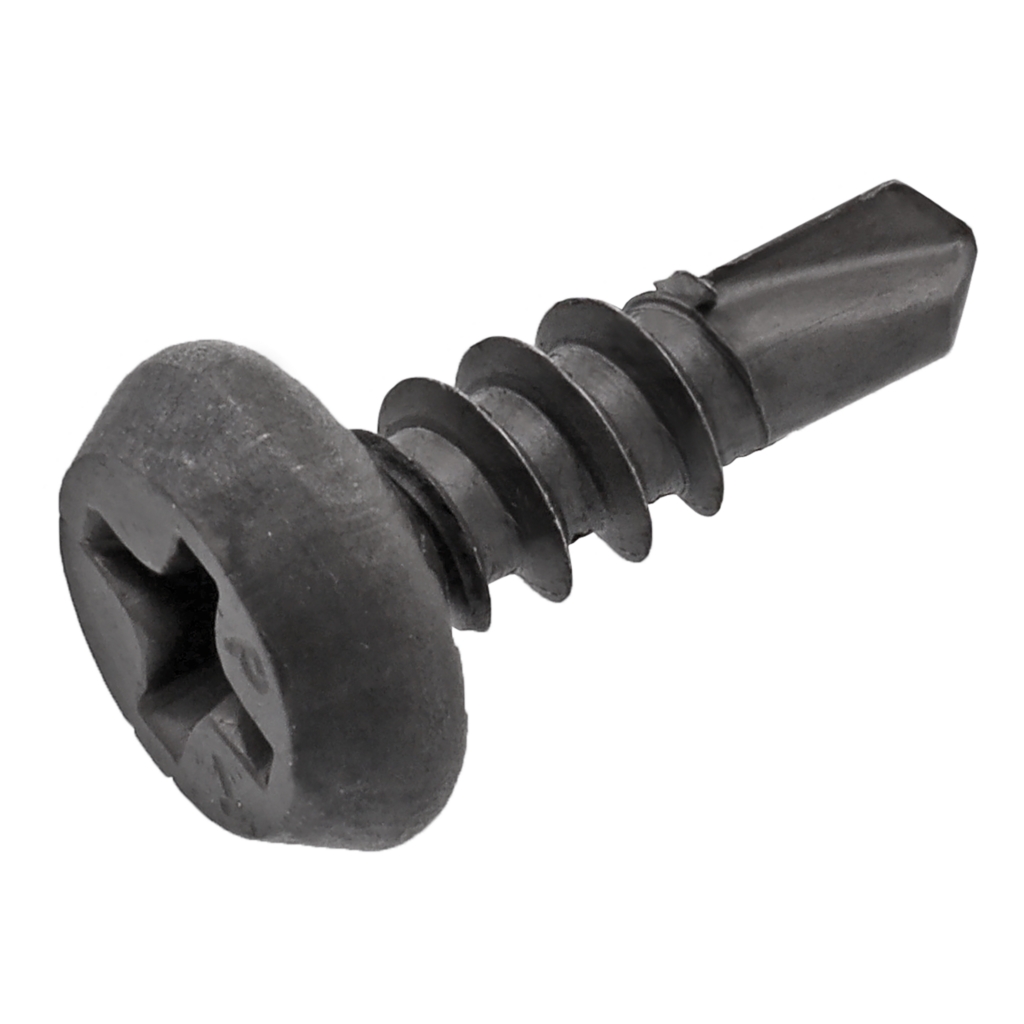

| PFD716 | 10000 | Phosphate Coated | |

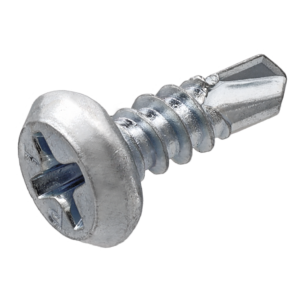

| PFZD716 | 10000 | Zinc Plated | |
| PFZD71615M | 15000 | Zinc Plated |
The same on every part number here
- Application
- Metal to Metal Screws
- Gauge
- #7
- Length
- 7/16 in.
- Head Type
- Pan Framer Head with Serrations
- Drive Type
- #2 Reduced Phillips
- Point Type
- #2 Drill Point
- Thread Type
- Fine Thread
- Self-Drilling
- Yes
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Packaging
- Carton
- Code Approvals
- ICC-ES Evaluation Report ESR-1408
Details
Self-Drilling Phosphate Coated Pan Framer Screws
Made from high carbon steel for strength and durability
For attaching steel track to steel studs
Self-Drilling Phosphate Coated Pan Framer Screws for 20 to 16 gauge steel
#2 Reduced Phillips reduces the chance of over driving
Serrations under the drive head prevent spin out
Phosphate coating for faster driving and some corrosion resistance
Sharp point pierces through metal substrates quickly
Documents
4 documents, served straight from Pro-Twist so you always get the current revision.
- ESR-1408Evaluation report · PDF ↗
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
