Star Drive Flat Head Concrete Screw
Quote requiredPro-Twist Star Drive Flat Head Concrete Screw Anchors are designed for a secure connection when securing metal to concrete, brick, and other masonry. Flat head leaves a low-profile finish and the star drive provides a solid tool tip to fastener connection for high-torque applications. Pre-drill with the included drill bit and the high-low threads self-tap during driving for easy re-use. Sharp point makes installation into tough materials simple and reliable. Miami-Dade County Approved.
Application
Metal to Concrete
Head Type
Flat Head
Thread Type
High-Low Thread
Drive Type
Star Drive
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
25 of 25. Every figure is Pro-Twist's published data.| Part # | Gauge | Length | |
|---|---|---|---|

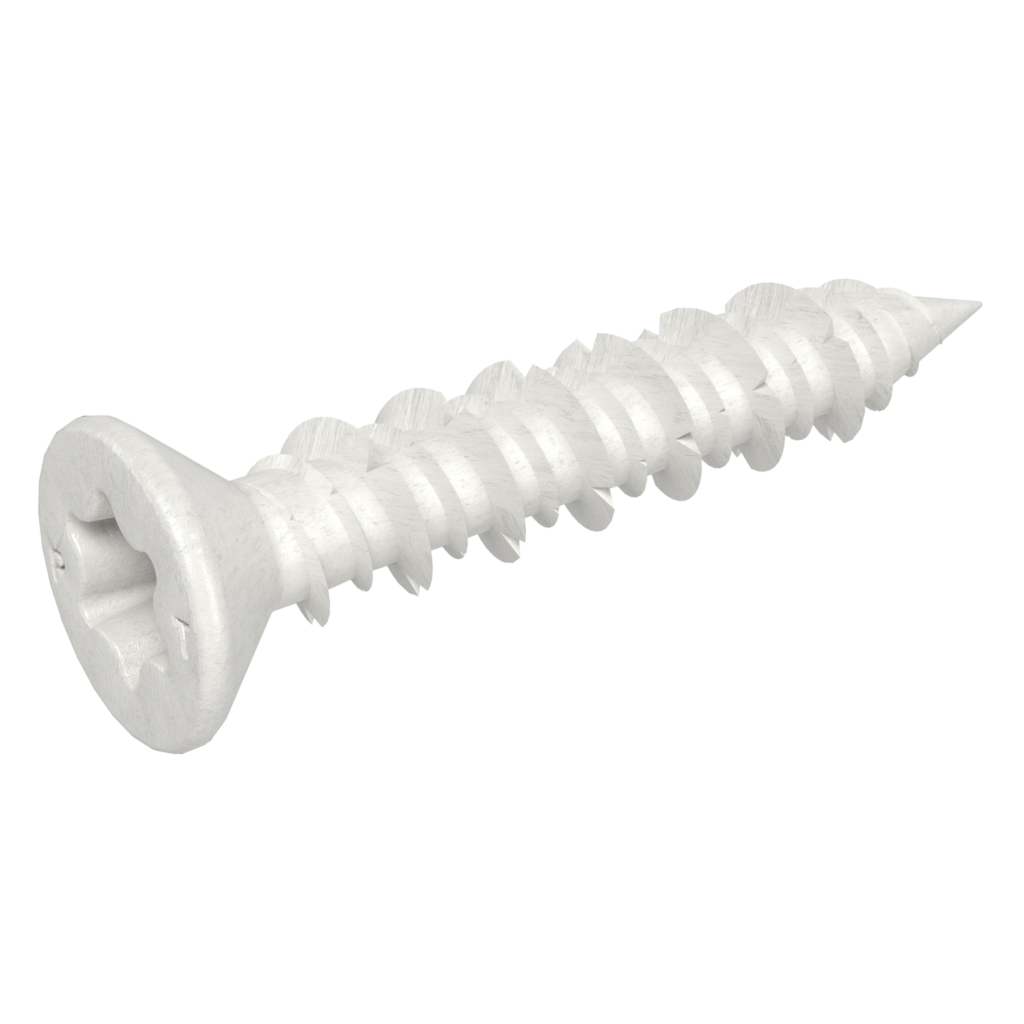

| FCS31141CW | 3/16 in. | 1-1/4 in. | |

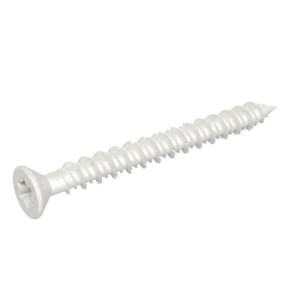

| FCS32141CW | 3/16 in. | 2-1/4 in. | |

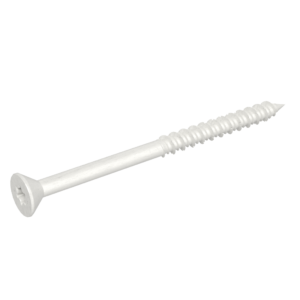

| FCS43341CW | 1/4 in. | 3-3/4 in. | |

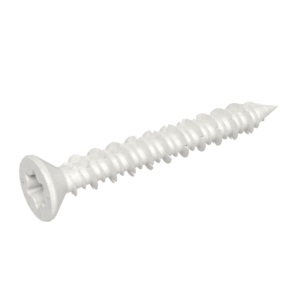

| FCS31341CW | 3/16 in. | 1-3/4 in. | |

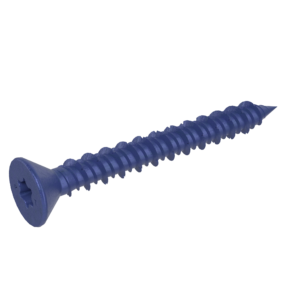

| FCS42141C | 1/4 in. | 2-1/4 in. | |

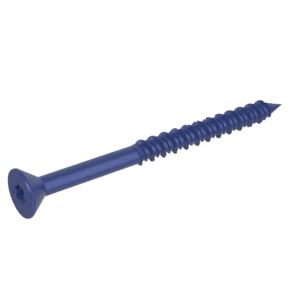

| FCS43141C | 1/4 in. | 3-1/4 in. | |

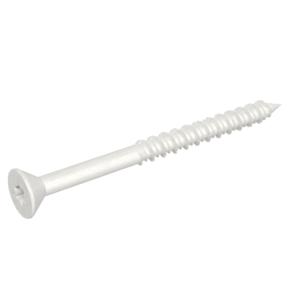

| FCS43141CW | 1/4 in. | 3-1/4 in. | |

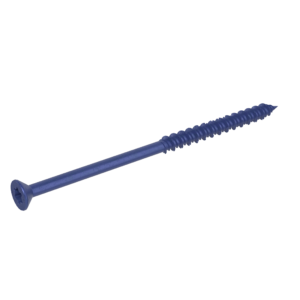

| FCS34001C | 3/16 in. | 4 in. | |
| FCS42141CW | 1/4 in. | 2-1/4 in. | |

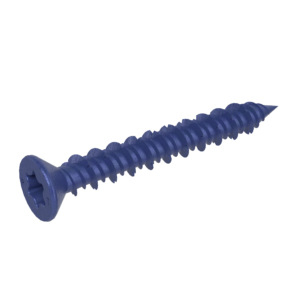

| FCS31341C | 3/16 in. | 1-3/4 in. | |

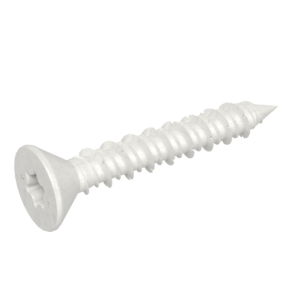

| FCS41341CW | 1/4 in. | 1-3/4 in. | |

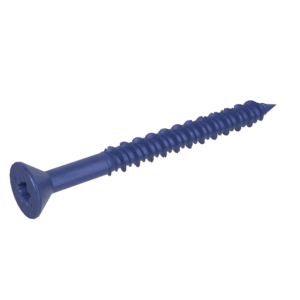

| FCS42341C | 1/4 in. | 2-3/4 in | |
| FCS32141C | 3/16 in. | 2-1/4 in. | |
| FCS31141C | 3/16 in. | 1-1/4 in. | |
| FCS32341C | 3/16 in. | 2-3/4 in | |
| FCS33341C | 3/16 in. | 3-3/4 in. | |
| FCS41141C | 1/4 in. | 1-1/4 in. | |
| FCS33141CW | 3/16 in. | 3-1/4 in. | |
| FCS43341C | 1/4 in. | 3-3/4 in. | |
| FCS33141C | 3/16 in. | 3-1/4 in. | |
| FCS41341C | 1/4 in. | 1-3/4 in. | |
| FCS44001C | 1/4 in. | 4 in. | |
| FCS42341CW | 1/4 in. | 2-3/4 in | |
| FCS41141CW | 1/4 in. | 1-1/4 in. | |
| FCS32341CW | 3/16 in. | 2-3/4 in |
The same on every part number here
- Application
- Metal/Wood to Concrete/Brick/Masonry
- Head Type
- Flat Head
- Drive Type
- Star Drive
- Point Type
- Sharp Point
- Thread Type
- High-Low Thread
- Self-Drilling
- No
- Finish or Coating
- Exterior Coated
- Base Material
- Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Piece Count
- 100
- Packaging
- Box
Details
A re-usable screw with high holding power for use in securing door and window frames, thresholds, and metal straps to masonry
Made from high carbon steel for strength and durability
For use in masonry anchoring applications
Flat head for a smooth finish and wide bearing surface
New star drive for a secure tool tip to fastener connection
Self-tapping high-low threads and corrosion resistant coating for long-lasting performance
Pre-drill with included bit for smooth installation
Documents
4 documents, served straight from Pro-Twist so you always get the current revision.
- NOA 23-0706.01Evaluation report · PDF ↗
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
