Star Drive Wafer Head Screw with Wings
Quote requiredPro-Twist Star Drive Wafer Head Screws with Wings are designed for efficient fastening of plywood to light gauge metal framing. Self-drilling point makes installation fast without the need to pre-drill. Fine threads grip metal substrate for a secure hold. Wafer head provides a wide bearing surface for a strong hold. Exterior coated for robust corrosion resistance and star drive creates a strong tool tip to fastener connection.
Application
Plywood to Metal Screws
Head Type
Wafer Head
Thread Type
Fine Thread
Drive Type
Star Drive
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
23 of 23. Every figure is Pro-Twist's published data.| Part # | Gauge | Length | Head Type | Packaging | Piece Count | Point Type | Finish or Coating | Code Approvals | |
|---|---|---|---|---|---|---|---|---|---|

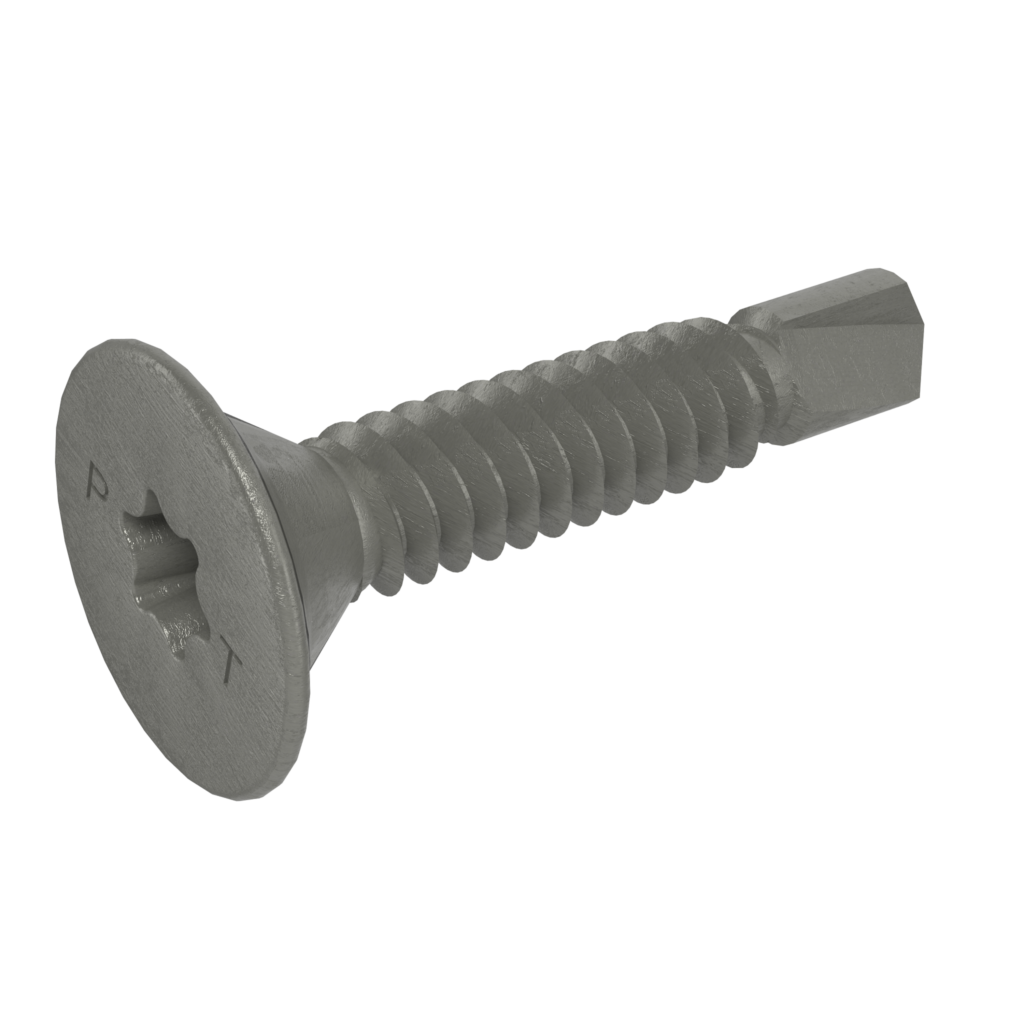

| SWD10100P | #10 | 1 in. | Wafer Head | Box | 5000 | Self-Drilling | Exterior Coated | ICC-ES Evaluation Listing ESL-1262 | |

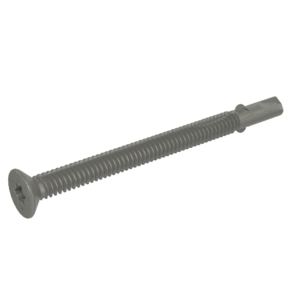

| SFW14314P | #14 | 3-1/4 in. | Flat Head | Box | 1000 | Self-Drilling Point with Wings | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |

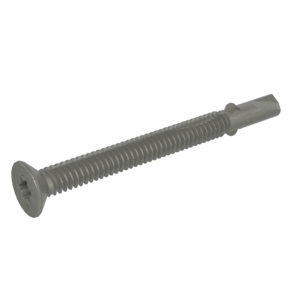

| SFW14234P | #14 | 2-3/4 in | Flat Head | Box | 1000 | Self-Drilling Point with Wings | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |

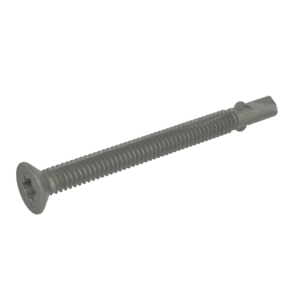

| SFW12212P | #12 | 2-1/2 in. | Flat Head | Box | 1000 | Self-Drilling Point with Wings | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |
| NSF12212P5 | #12 | 2-1/2 in. | Flat Head | Tub | 245 | Self-Drilling Point with Wings | Exterior Coated | N/A | |
| SFW12200Z | #12 | 2 in. | Flat Head | Box | 2000 | Self-Drilling Point with Wings | Zinc Plated | N/A | |
| SFW12212Z | #12 | 2-1/2 in. | Flat Head | Box | 1000 | Self-Drilling Point with Wings | Zinc Plated | N/A | |

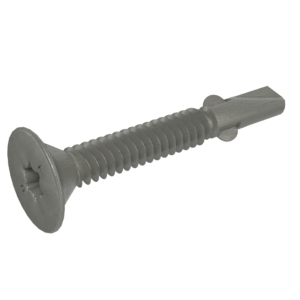

| SWD101716P | #10 | 1-7/16 in. | Flat Head | Box | 3000 | Self-Drilling Point with Wings | Exterior Coated | N/A | |

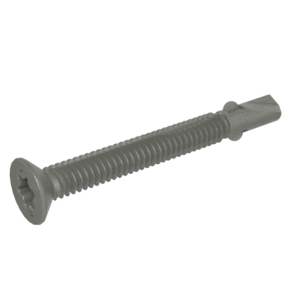

| SFW12200P | #12 | 2 in. | Flat Head | Box | 2000 | Self-Drilling Point with Wings | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |
| SWD10114P | #10 | 1-1/4 in. | Wafer Head | Box | 4000 | Self-Drilling Point | Exterior Coated | ICC-ES Evaluation Listing ESL-1262 | |
| SFW10158P | #10 | 1-5/8 in. | Flat Head | Box | 3000 | Self-Drilling Point with Wings | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |
| SFW10158P5 | #10 | 1-5/8 in. | Flat Head | Tub | 480 | Self-Drilling Point with Wings | Exterior Coated | N/A | |
| NSFW122125 | #12 | 2-1/2 in. | Flat Head | Tub | 245 | Self-Drilling Point with Wings | Zinc Plated | N/A | |
| NSFW14314P5 | #14 | 3-1/4 in. | Flat Head | Tub | 142 | Self-Drilling Point with Wings | Exterior Coated | — | |
| NSFW12212P1 | #12 | 2-1/2 in. | Flat Head | Box | 49 | Self-Drilling Point with Wings | Exterior Coated | N/A | |
| NSFW14234P5 | #14 | 2-3/4 in | Flat Head | Tub | 168 | Self-Drilling Point with Wings | Exterior Coated | N/A | |
| SFW14314Z | #14 | 3-1/4 in. | Flat Head | Box | 1000 | Self-Drilling Point with Wings | Zinc Plated | N/A | |
| NSFW122121 | #12 | 2-1/2 in. | Flat Head | Box | 49 | Self-Drilling Point with Wings | Zinc Plated | N/A | |
| SWD10112P | #10 | 1-1/2 in. | Flat Head | Box | 4000 | Self-Drilling Point | Exterior Coated | ICC-ES Evaluation Listing ESL-1262 | |
| NSFW12200P1 | #12 | 2 in. | Flat Head | Box | 61 | Self-Drilling Point | Exterior Coated | N/A | |
| NSFW12200P5 | #12 | 2 in. | Flat Head | Tub | 303 | Self-Drilling Point | Exterior Coated | ICC-ES Evaluation Report ESR-4706 | |
| SWD1034P | #10 | 3/4 in. | Flat Head | Box | 8000 | Self-Drilling Point | Exterior Coated | ICC-ES Evaluation Listing ESL-1262 | |
| NSFW10158P5 | #10 | 1-5/8 in. | Flat Head | Tub | 480 | Self-Drilling Point | Exterior Coated | ICC-ES Evaluation Report ESR-4706 |
The same on every part number here
- Application
- Plywood to Metal Screws
- Drive Type
- Star Drive
- Thread Type
- Fine Thread
- Self-Drilling
- Yes
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
Details
Intended for use with plywood up to 1/2 in.
Made from high carbon steel
For use in interior and exterior applications
Wafer Head for a smooth finish and wide bearing surface
Star drive for a secure tool tip to fastener connection
Self Drilling point for efficient installation
Documents
5 documents, served straight from Pro-Twist so you always get the current revision.
- ESL-1262Evaluation report · PDF ↗
- ESR-4706Evaluation report · PDF ↗
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
