Pro-Twist · Steel Screws (Light Gauge)

Hex Washer Head Screws with Neoprene Bonded Washer

Quote required

Pro-Twist Hex Washer Head Screws with Bonded Neoprene Washers are designed to attach sheet metal to wood substrates in building applications. Exterior coated for increased corrosion resistance, the neoprene washer creates a water tight seal around fastener. T 17 point drills easily through metal and coarse threads ensure fast action and reduce torque and strip-out during installation. Various colors available to blend into finished metal materials.

Application
Metal to Wood Screws
Head Type
Hex Washer Head
Thread Type
Coarse Thread
Point Type
Type 17

Description, photography and documents as published by Pro-Twist. Their product page ↗

Part numbers

8 of 8. Every figure is Pro-Twist's published data.

Gauge

Length

Drive Type

Finish or Coating

Part #	Gauge	Length	Drive Type	Finish or Coating

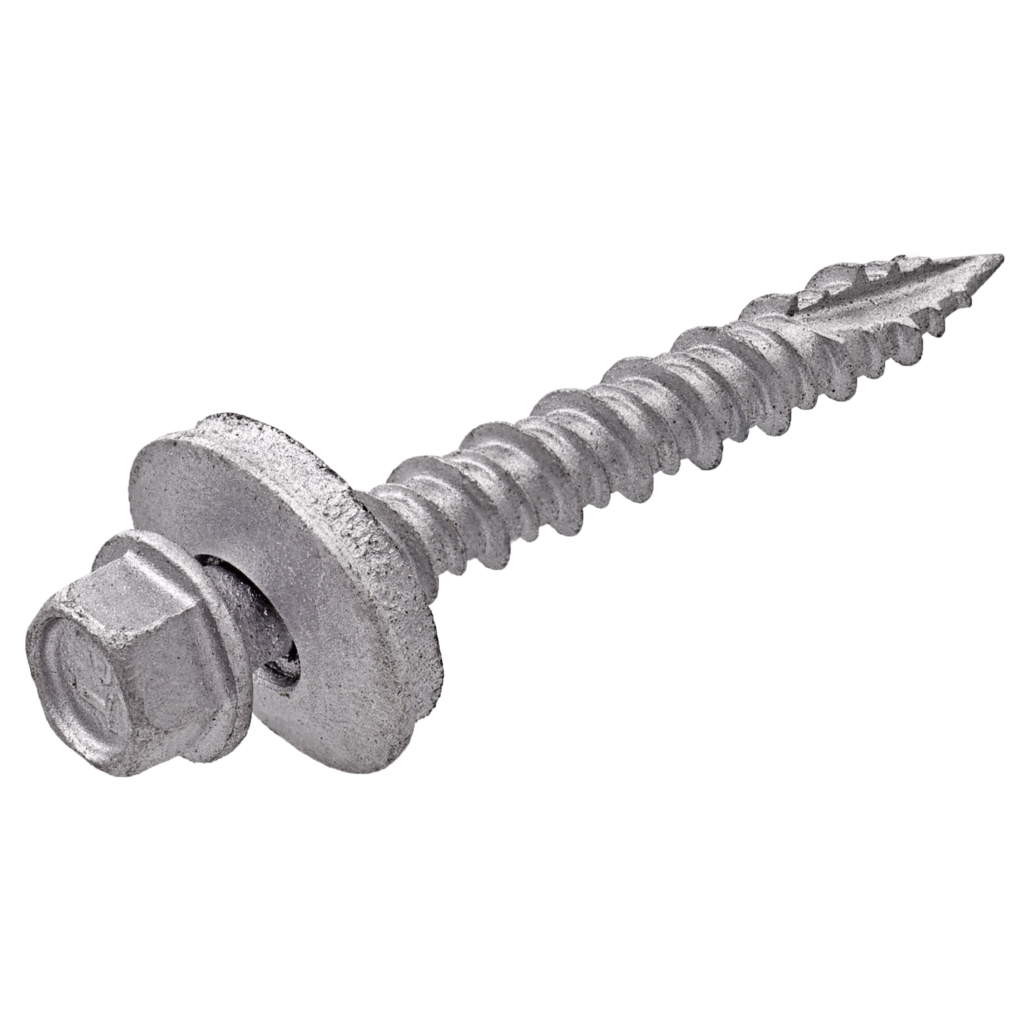

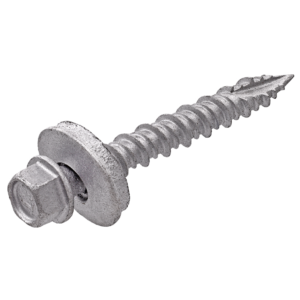

HTW10112PG	#10	1-1/2 in.	5/16 in. Hex Drive	Exterior Coated

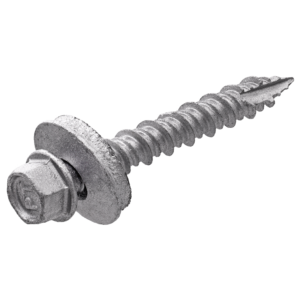

HTW10212PG	#10	2-1/2 in.	5/16 in. Hex Drive	Exterior Coated
HTW14200MR	#14	2 in.	3/8 in. Hex Drive	Exterior Coated - Manor Red

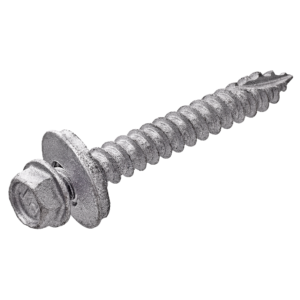

HTW14200PG	#14	2 in.	3/8 in. Hex Drive	Exterior Coated

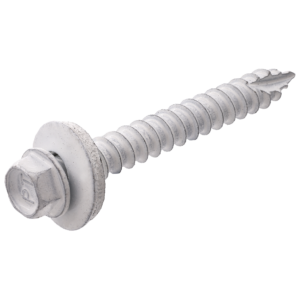

HTW14200SM	#14	2 in.	3/8 in. Hex Drive	Exterior Coated - Surf Mist

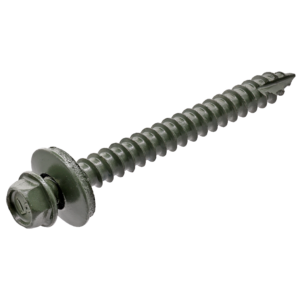

HTW14212CG	#14	2 in.	3/8 in. Hex Drive	Exterior Coated - Cottage Green

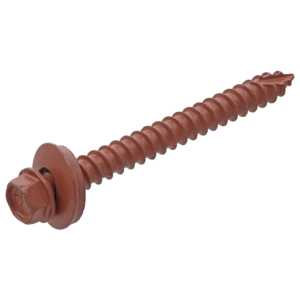

HTW14212MR	#14	2-1/2 in.	3/8 in. Hex Drive	Exterior Coated - Manor Red

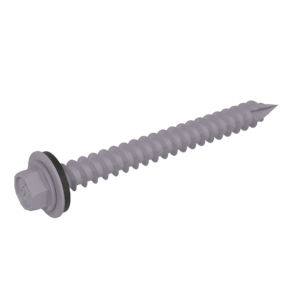

HTW14212PG	#14	2-1/2 in.	3/8 in. Hex Drive	Exterior Coated

The same on every part number here

Application: Metal to Wood Screws
Head Type: Hex Washer Head
Point Type: Type 17
Thread Type: Coarse Thread
Self-Drilling: Yes
Base Material: High Carbon Steel
Hand Drive: Yes
Collated: No
Piece Count: 250
Packaging: Bag

Details

Exterior Coated hex washer head screws with neoprene bonded washer for metal to wood building applications

Made from high carbon steel for strength and durability

For metal to wood building applications where moisture needs to be sealed out

5/16 in. Hex Head for a secure hold during driving

Neoprene bonded washer creates waterproof seal

Coarse threads grip wood substrate and provide strong compressive grip

For use with sheet metal to wood where moisture intrusion is a concern

Exterior coated for increased corrosion resistance

T 17 Self-drilling point cuts into metal and wood studs quickly and easily

Documents

3 documents, served straight from Pro-Twist so you always get the current revision.

Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
