Pro-Twist · Steel Screws (Light Gauge)

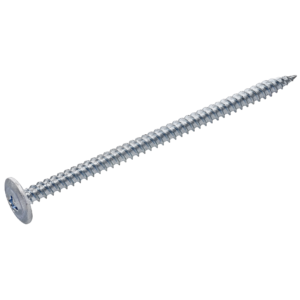

Modified Truss Screws
Quote requiredPro-Twist Modified Truss Screws are designed to attach metal lath to wood or 25 to 20 gauge steel studs in stucco. Zinc plated for enhanced corrosion resistance, the wide truss head provides a secure hold in metal or wood substrates. #2 Phillips Drive prevents over driving and the sharp point pierces quickly through all substrates.
Application
Metal to Metal, Metal to Wood
Head Type
Modified Truss Head
Thread Type
Twin Lead Thread
Point Type
Sharp Point
Description, photography and documents as published by Pro-Twist. Their product page ↗
Part numbers
9 of 9. Every figure is Pro-Twist's published data.| Part # | Length | Piece Count | |
|---|---|---|---|
| MT812 | 1/2 in. | 10000 | |

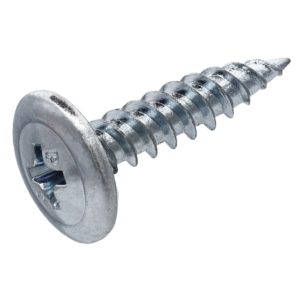

| MT834 | 3/4 in. | 8000 | |

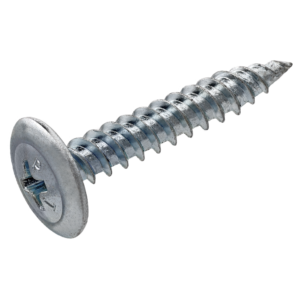

| MT100 | 1 in. | 5000 | |

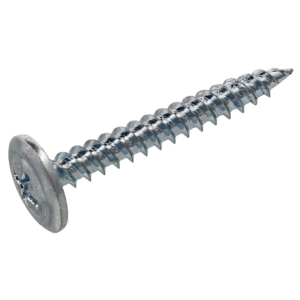

| MT114 | 1-1/4 in. | 5000 | |

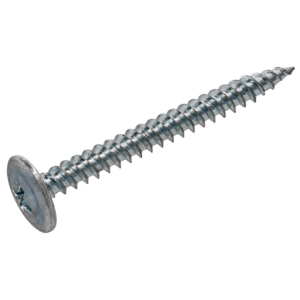

| MT158 | 1-5/8 in. | 5000 | |

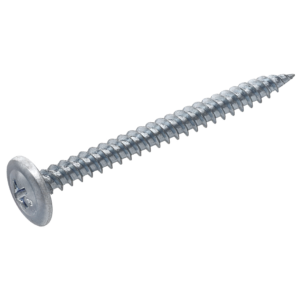

| MT178 | 1-7/8 in. | 4000 | |

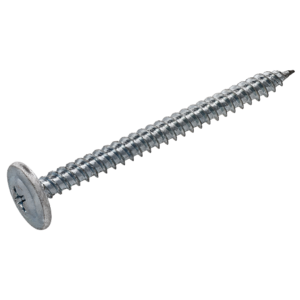

| MT200 | 2 in. | 2500 | |

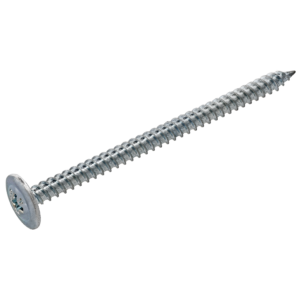

| MT212 | 2-1/2 in. | 2000 | |
| MT300 | 3 in. | 1500 |
The same on every part number here
- Application
- Metal to Metal Screws
- Gauge
- #8
- Head Type
- Modified Truss Head
- Drive Type
- #2 Phillips
- Point Type
- Sharp Point
- Thread Type
- Twin Lead Thread
- Self-Drilling
- No
- Finish or Coating
- Zinc Plated
- Base Material
- High Carbon Steel
- Hand Drive
- Yes
- Collated
- No
- Packaging
- Carton
Details
Zinc plated modified truss head screws for securing metal lath to wood or steel studs
Made from high carbon steel for strength and durability
For various applications involving wood and metal studs
Modified truss head screws for a powerful hold in wood or metal substrates
#2 Phillips Drive reduces the chance of over driving
Well defined threads grip wood or metal studs for a solid grip
Zinc plated for increased corrosion resistance
Sharp point pierces through wood and metal substrates quickly
Documents
3 documents, served straight from Pro-Twist so you always get the current revision.
- Pro-Twist Product CatalogProduct catalogue · PDF ↗
- Pro-Twist Fastener PosterLiterature · PDF ↗
- PrimeGuard PLUS® WarrantyWarranty · PDF ↗
Pro-Twist publishes these by line rather than by part number — one catalogue and one warranty cover the whole range. Anything above marked as an evaluation report is the listing this product is actually approved under.
